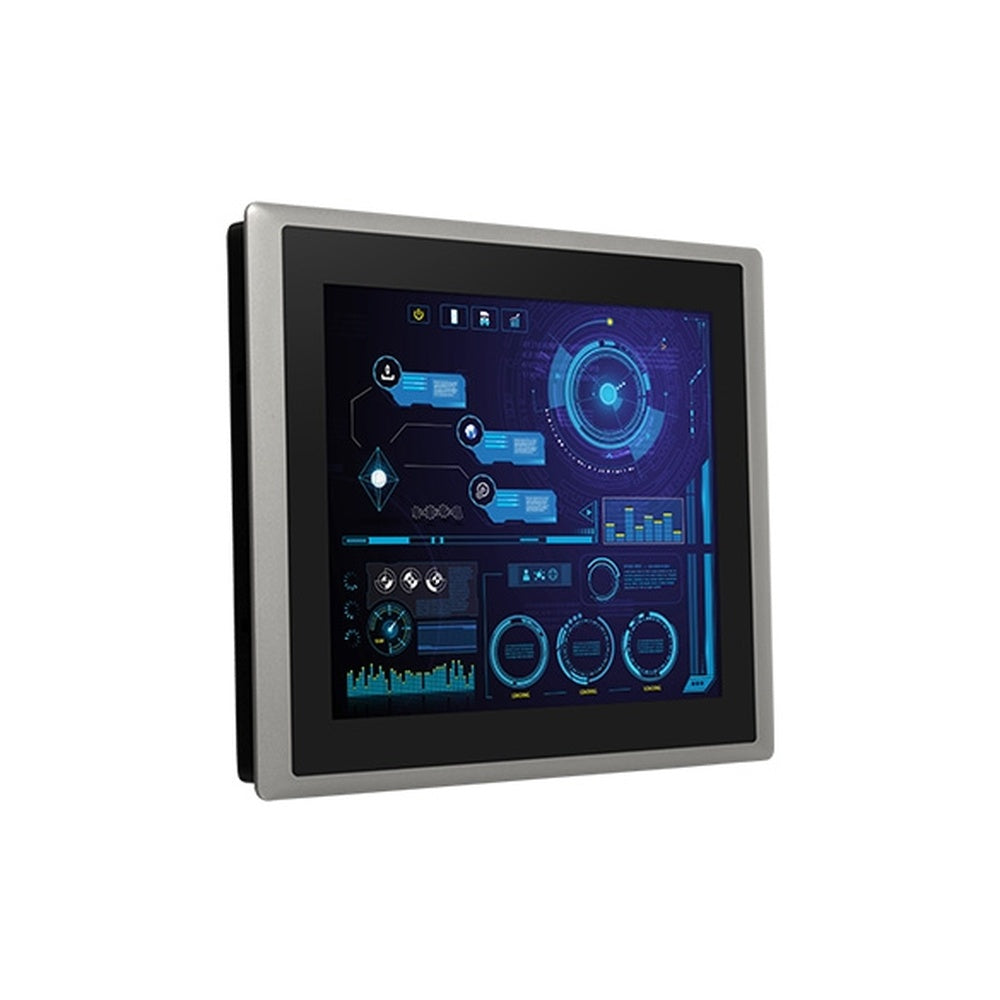

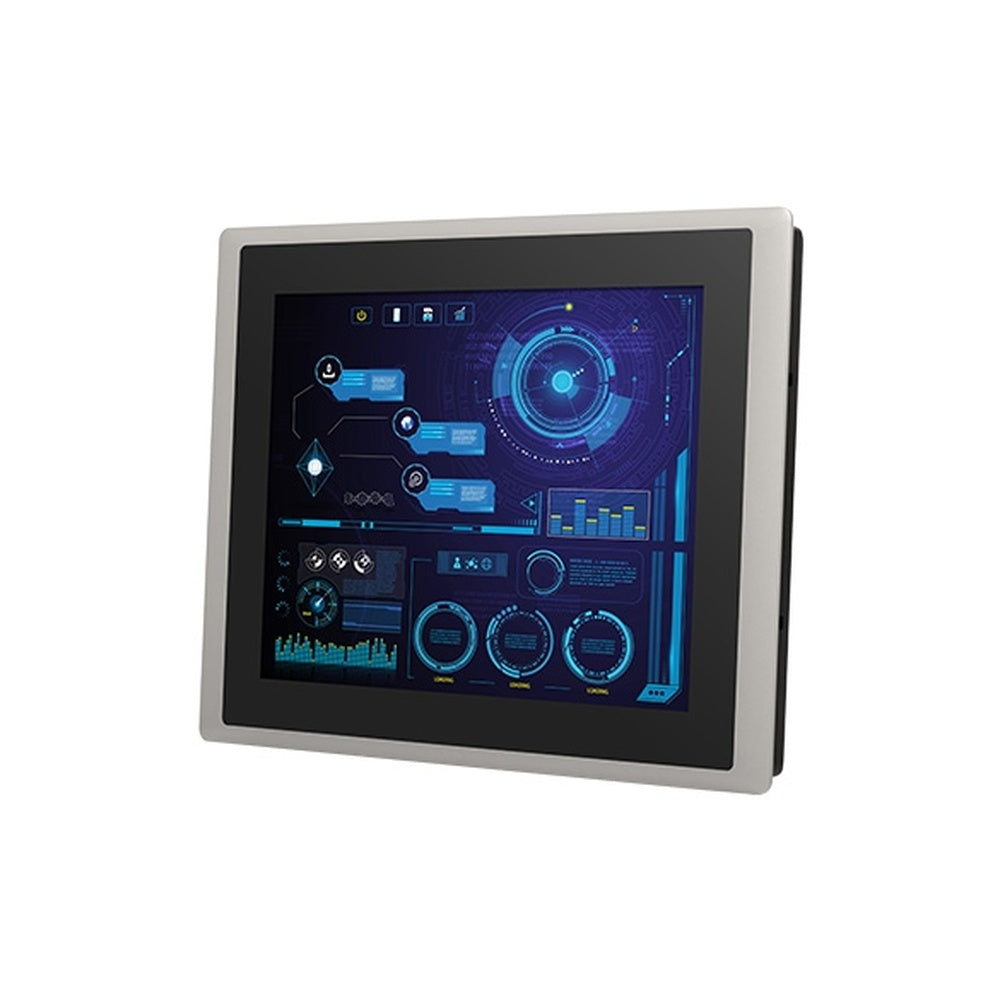

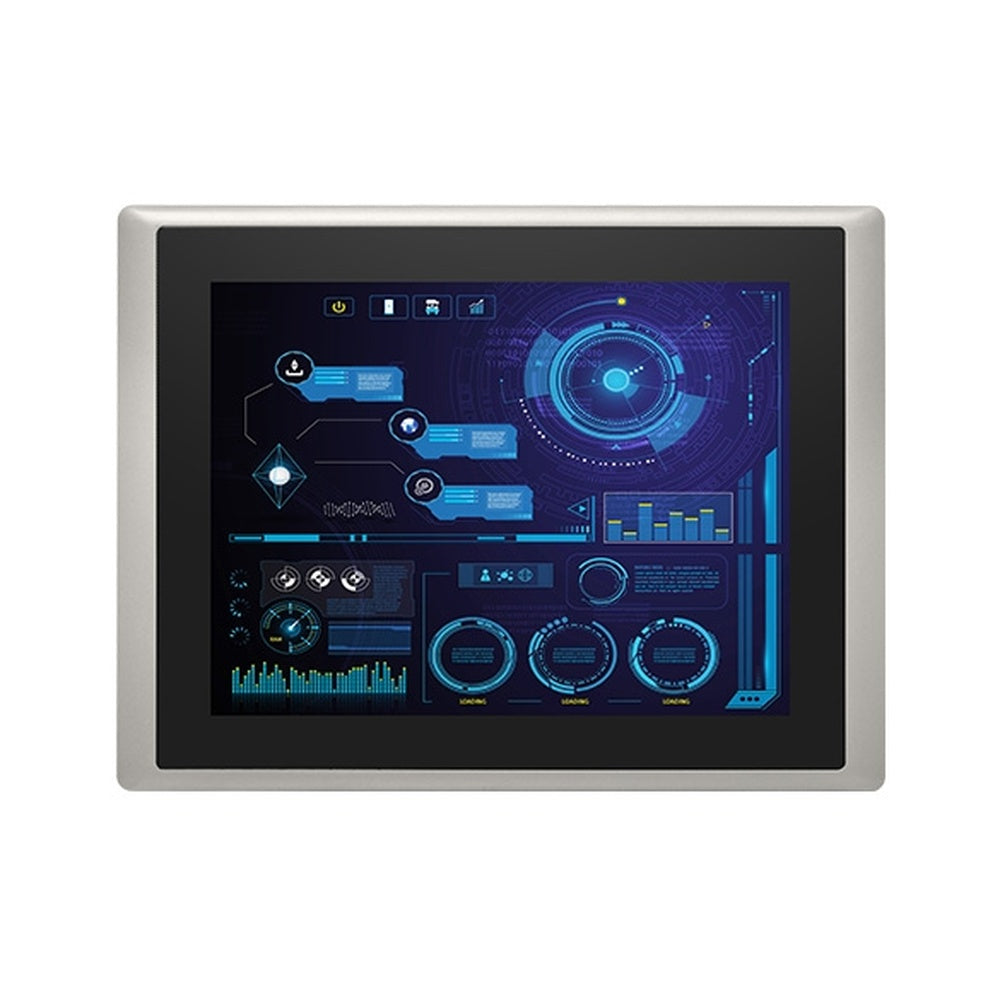

Cincoze CV-112H / P2102 Series High Performance Modular Industrial Panel PC

The CV-112H/P2102 Series is a 12.1" TFT-LCD panel PC with Intel® 8th generation Core™ U Series Processor and is suitable for the high-performance requirement in factory and machine automation applications. The processor brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the panel PC is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory.

With its slim design, the CV-112H/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CV-112H/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CV-112H/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CV-112H/P2102 Series is appropriate for harsh environments and critical industrial applications.

Furthermore, the CV-112H/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

CV-112H / P2102 Series

12.1" TFT-LCD Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor

PRODUCTS FEATURES

• 12.1" 1024 x 768 (XGA) TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch
• Onboard 8th Generation Intel® Core™ U Series Processor
• 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
• Supports Triple Independent Display
• Integrated USB 3.2 Gen 2 supports up to 10Gbps
• M.2 E Key Socket for Wireless Module or Intel CRF Module
• Supports Ignition Sensing Function (IGN) (with optional CFM module)
• Supports 2x PoE+ Function (with optional CFM module)
• Designed with Rugged Aluminum Die-casting Front Bezel
• True Flat IP65 Compliant Front Panel Protection
• Supports Panel / VESA / Rack Mounting

Available Sizes & Specifications

Product	Model	Display	CPU	I/O	Expansion
	CV-112H / P2102 Series	12.1" TFT 1024 x 768 (4:3)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-115 / P2102 Series	15" TFT 1024x768 (4:3)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-117 / P2102 Series	17" TFT 1280x1024 (5:4)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-119 / P2102 Series	19" TFT 1280x1024 (5:4)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-W115 / P2102 Series	15.6" TFT 1366 x 768 (16:9)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-W115FH / P2102 Series	15.6" TFT 1920x1080 (16:9)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-W121 / P2102 Series	21.5" TFT 1920x1080 (16:9)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
	CV-W124 / P2102 Series	24" TFT 1920x1080 (16:9)	Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE	1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module Request a Quote
