Compact, Fanless Industrial Edge AI Computer

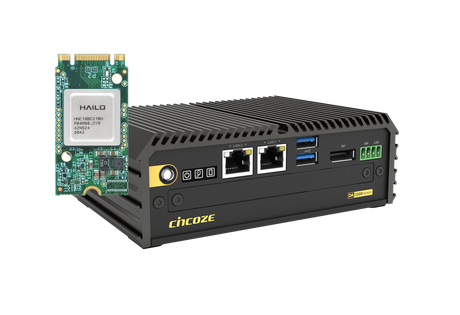

The DA-1200-N97-R10-AI is a fanless embedded AI computer designed for industrial machine vision applications on the edge. Built around the Intel Alder Lake N97 processor and the Hailo-8™ M.2 AI Acceleration VPU, it delivers efficient computing and neural processing power in a compact, rugged chassis, making it an ideal choice for smart manufacturing, packaging, quality control, and other factory automation.

Key Features

Intel Alder Lake-N97 Processor – Ensures efficient processing for industrial tasks

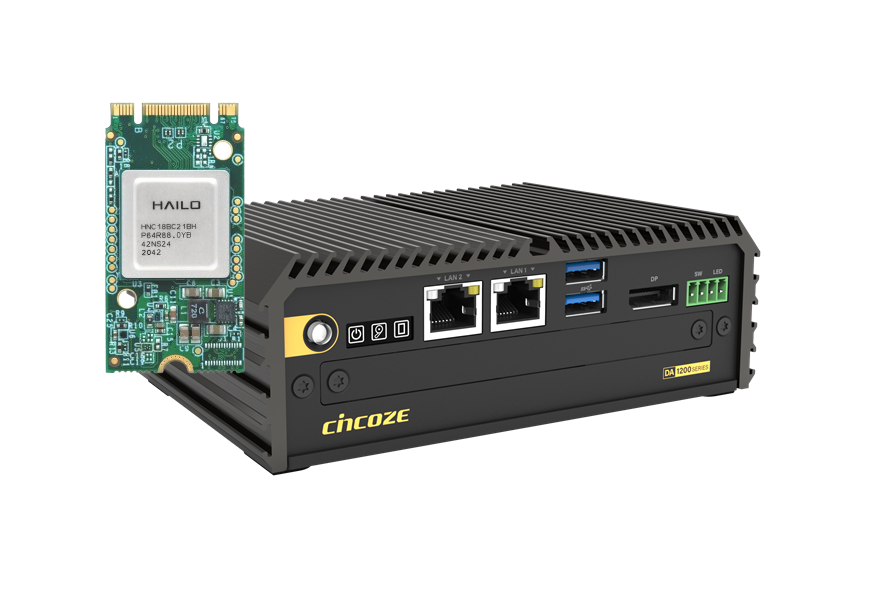

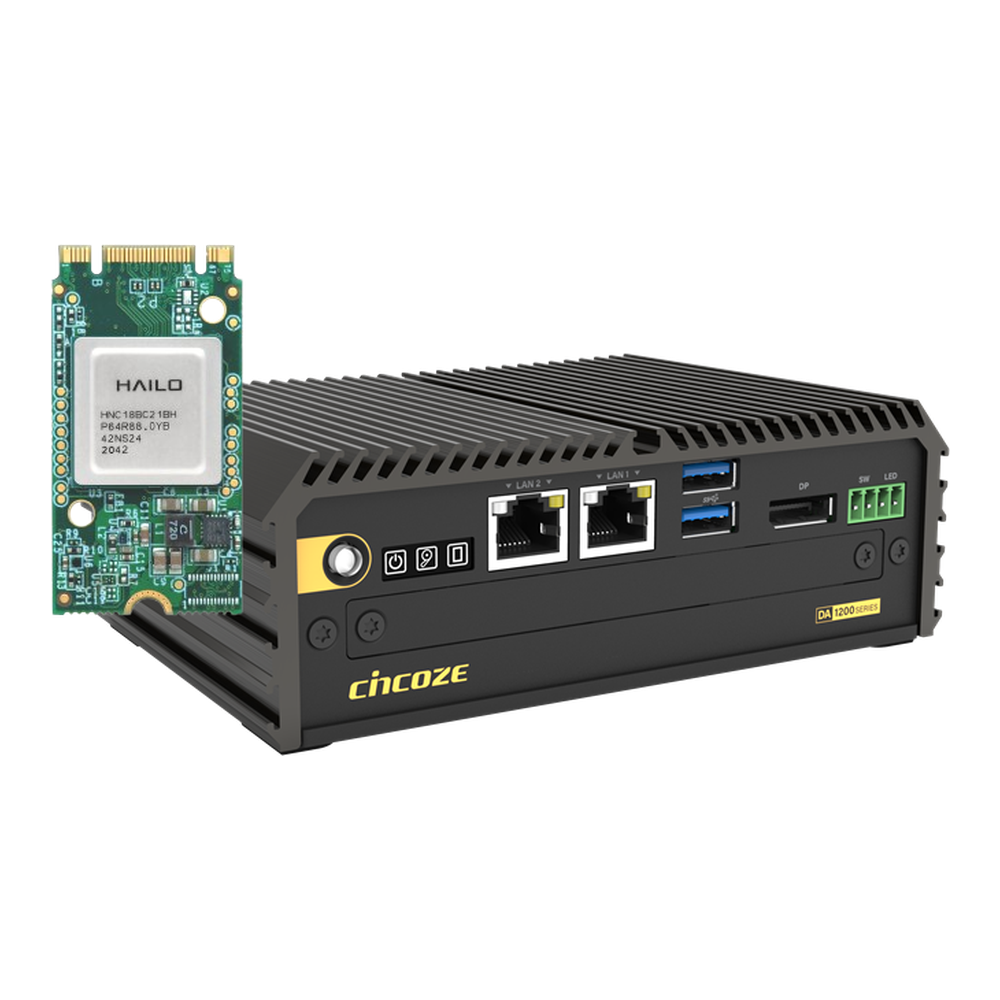

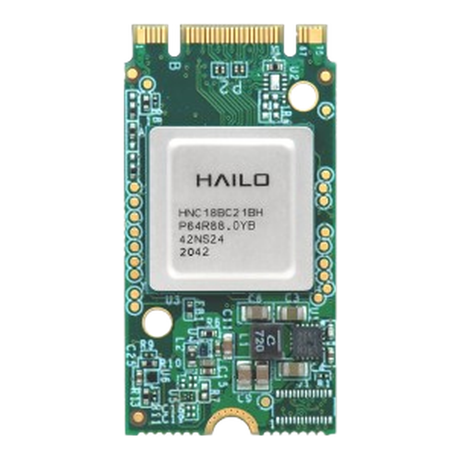

Hailo-8™ M.2 AI Acceleration Module - 26 TOPS AI Computing delivered in just 2.5W
Fanless Design – Passive cooling for silent and reliable operation.
Compact Form Factor – (150 x 105 x 52.3 mm), ideal for space-constrained environments.
Versatile Mounting Options – Supports wall, side, and DIN rail mounting for flexible installation.
Wide Operating Temperature Range – -40°C to 70°C, suitable for harsh environments.
Modular Expansion – Includes two M.2 Key B slots for storage/wireless modules and a CMI interface for additional I/O expansion.

	Specifications
CPU/VPU	Intel Alder Lake-N97 with Hailo-8 VPU
Memory	Supports up to 16GB DDR5 4800MHz SO-DIMM
Storage	Supports 2.5" SATA HDD/SSD or half-slim SSD

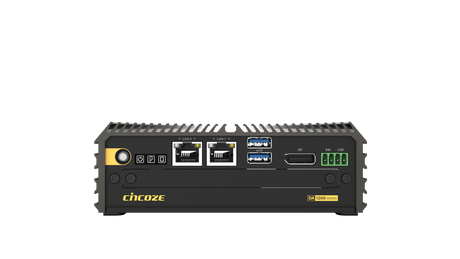

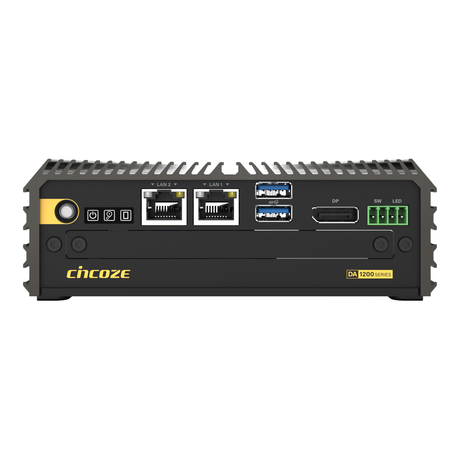

Networking	Dual 2.5GbE LAN ports for high-speed connectivity
Display Output	1 x DisplayPort (up to 4096 x 2304 @ 60Hz)
USB Ports	2 x USB 3.2 Gen2 (10Gbps)
Expansion	2 x M.2 Key B slots, 1 x Universal I/O Bracket, CMI interface for additional I/O

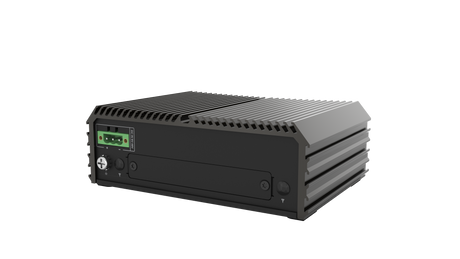

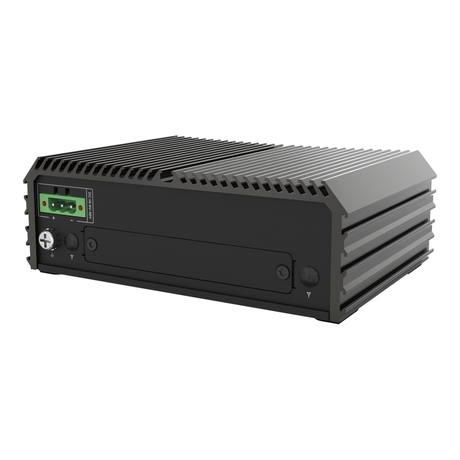

Power Input	9 to 48V DC, via 3-pin terminal block
Certifications	UL, cUL, CB, IEC, EN 62368-1
