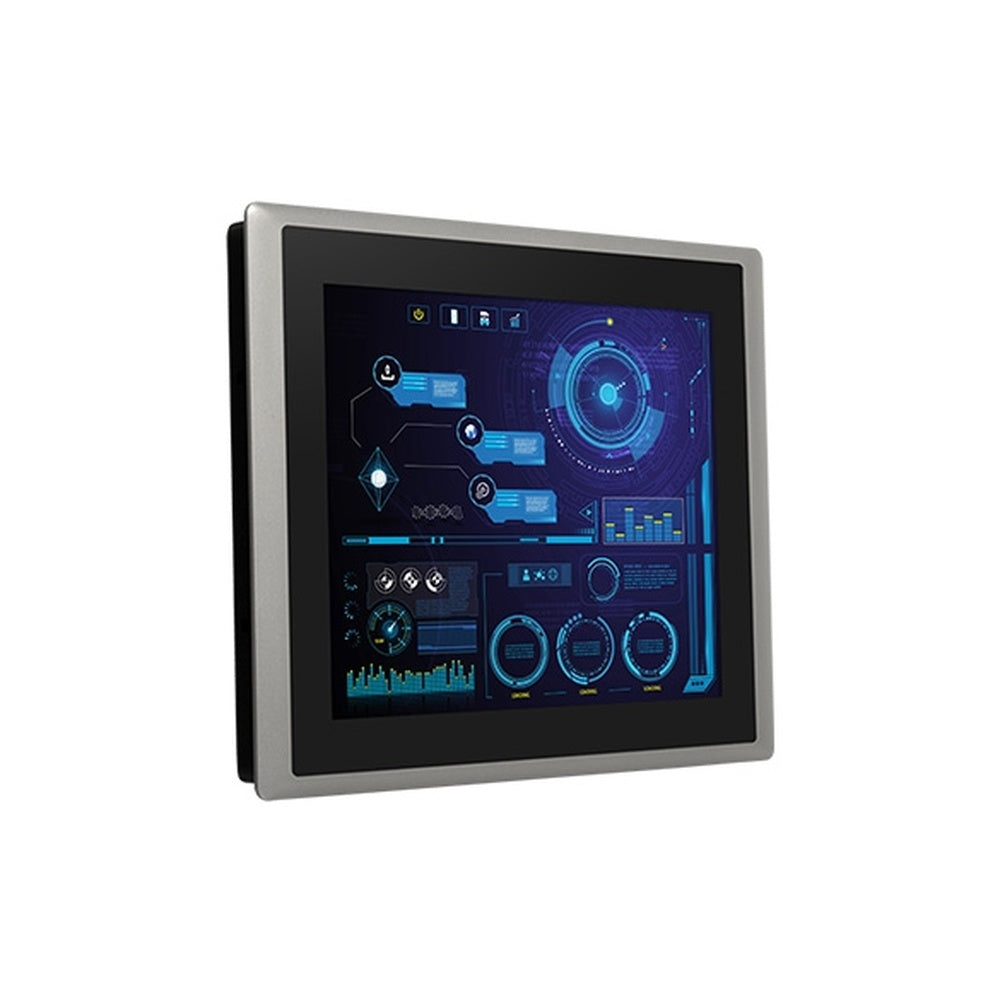

Cincoze CV-112H / P2002 Series High Performance Modular Industrial Panel PC

Name: Cincoze CV-112H / P2002 Series High Performance Modular Industrial Panel PC
Brand: Cincoze
Price: 2812.00 CAD
Availability: InStock

Starting at:

$2,812.00 CAD

Final pricing depends on configuration, options, and volume.

Available sizes: 12.1" 15" 17" 19" 15.6"W 15.6"FH 21.5" 24"

Request a Quote / More Info

Get Bulk or Volume Pricing

Call us for more info: 727-264-0930
Email: sales@smallpc.com

How to Order from SmallPC

SmallPC specializes in custom-configured rugged computing and display solutions. Our process ensures you get the right system for your environment, application, and budget.

Our Ordering Process

Share Your Requirements
Contact our team or book a free consultation to discuss your application, industry, environment, and performance needs.
Configuration & Consultation
Our experts help configure the right system, including CPU, I/O, storage, expansion, certifications, and accessories.
Custom Quote
You receive a tailored quote based on your configuration, quantity, and project timeline. Bulk and volume pricing available.
Place Your Order
Once approved, we finalize the order and begin production and fulfillment.

Book a Free Consultation

Payment Options

We accept all major credit cards and can extend terms to qualified applicants.

Delivery and Shipping

We ship worldwide! Contact us about rates or using your own account.

Description

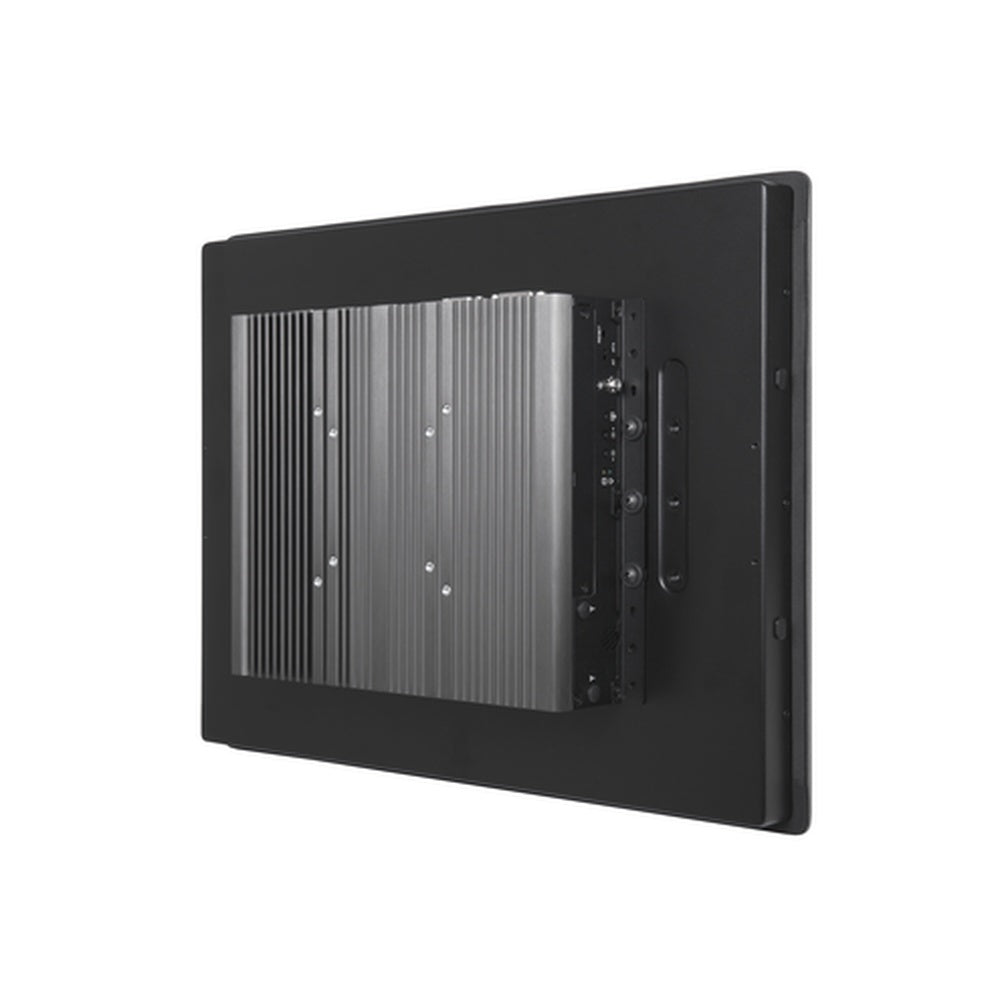

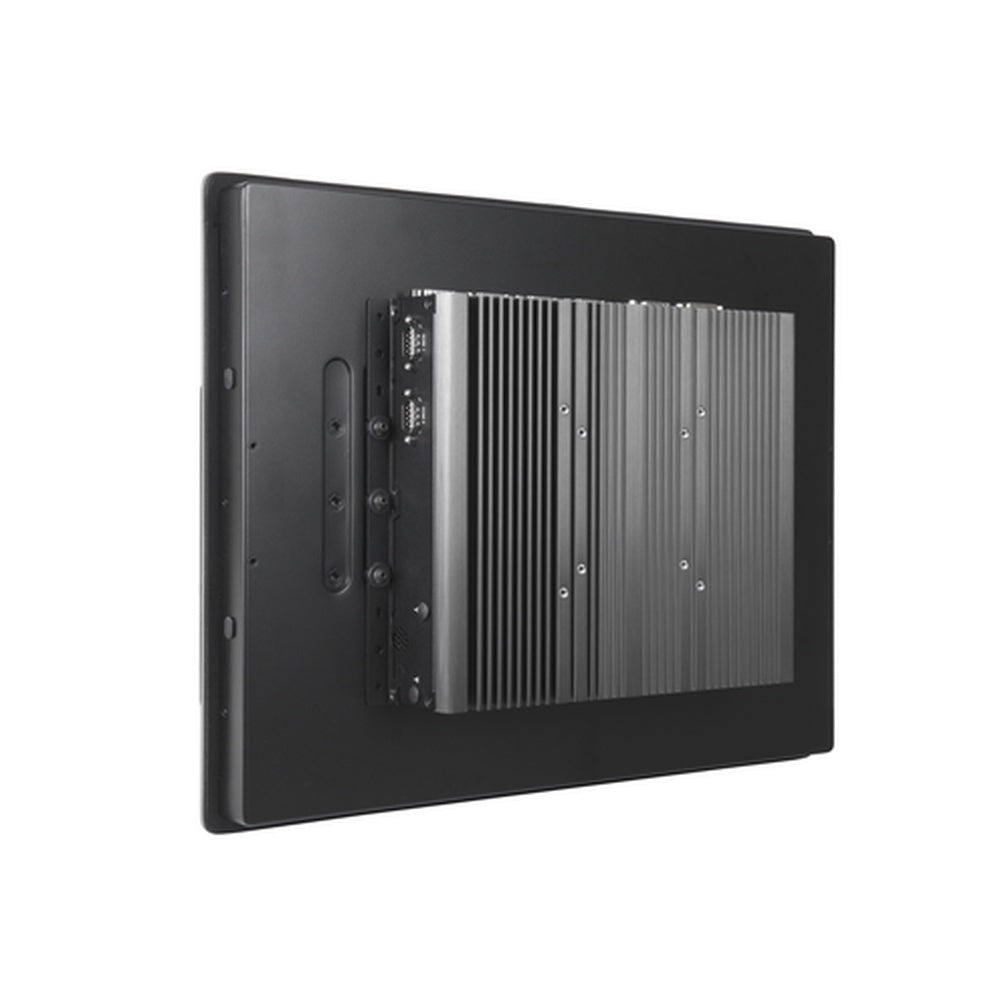

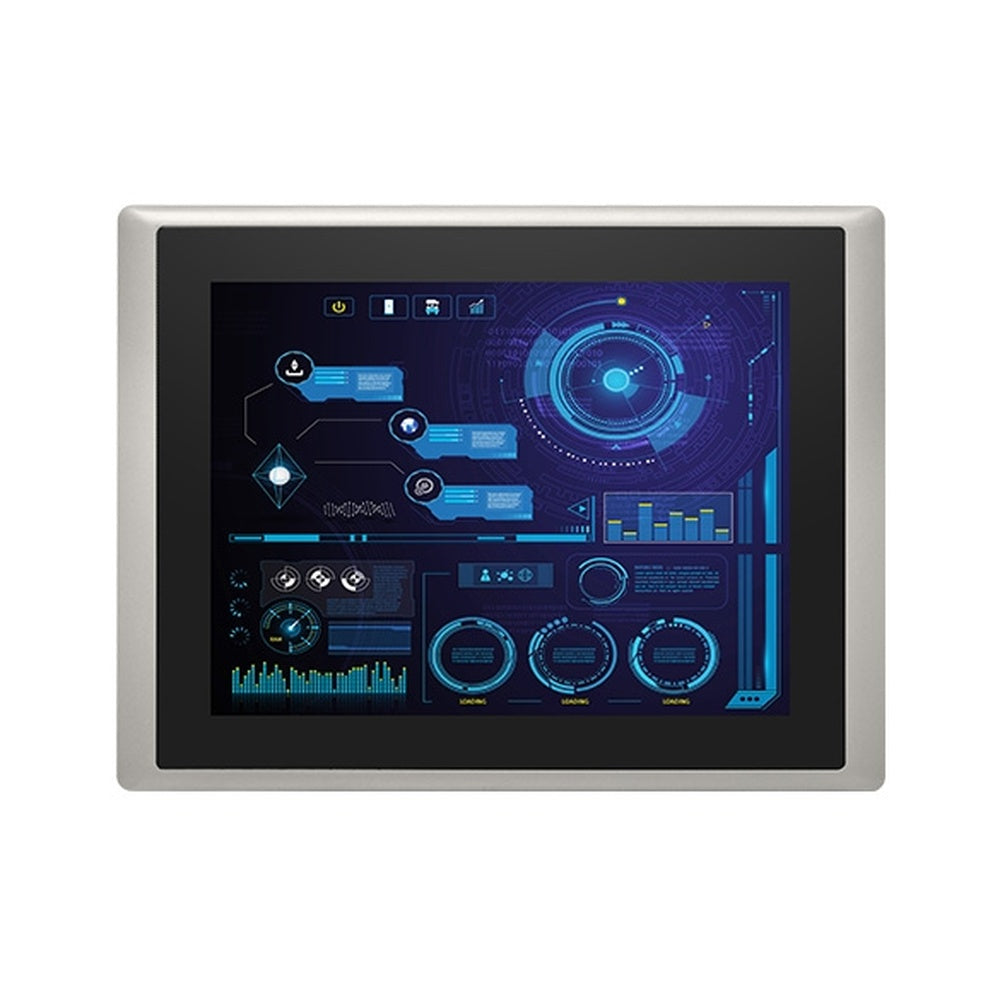

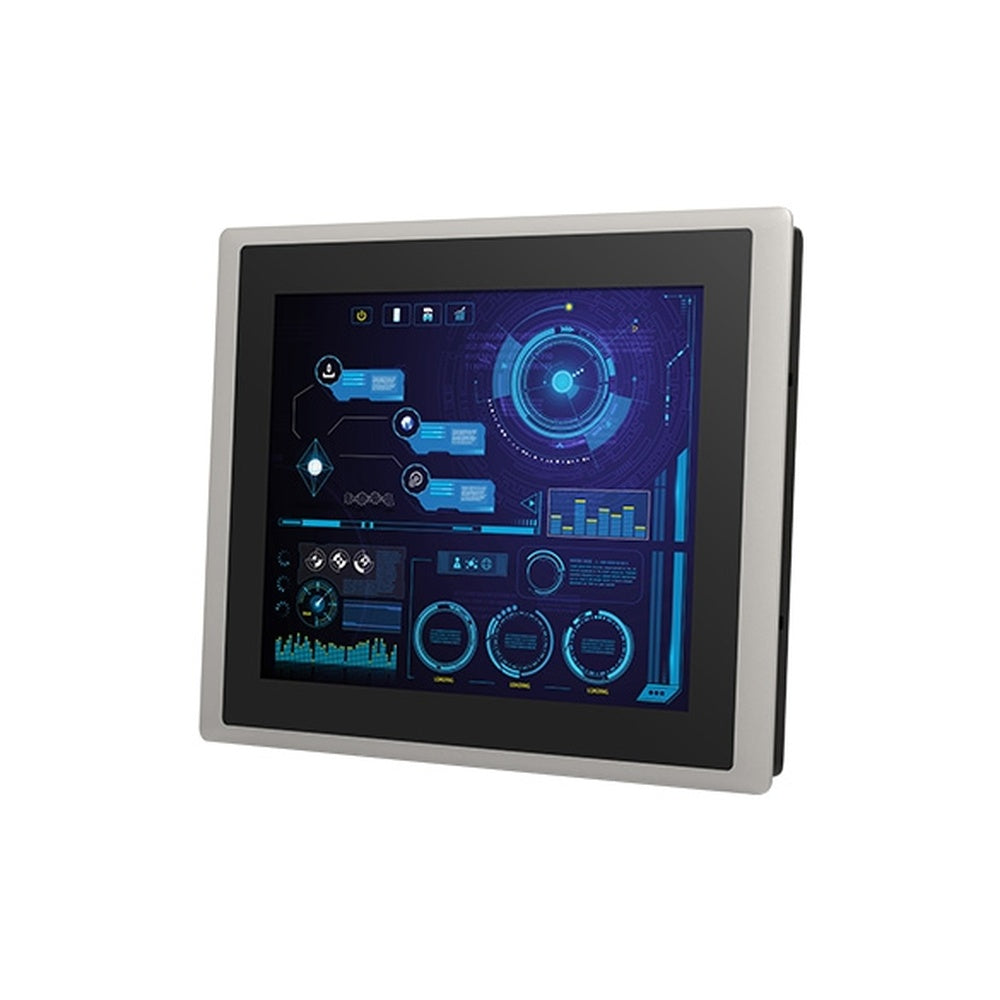

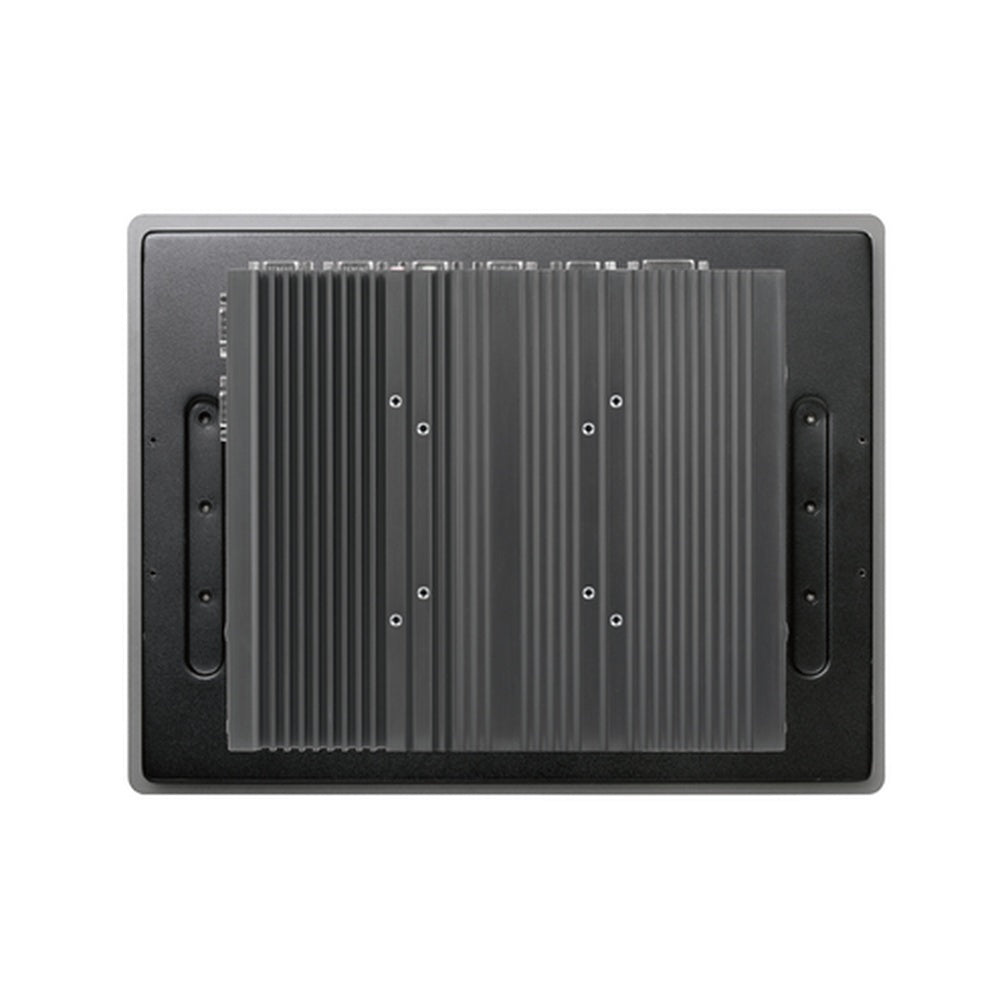

Cincoze CV-112H/P2002 Series is a 12.1” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power.

The CV-112H/P2002 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-112H/P2002 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.

The CV-112H/P2002 Series is a truly rugged computing system supporting wide operating temperature, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-112H/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.

CV-112H / P2002 Series

12.1" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology

PRODUCTS FEATURES

12.1" XGA TFT-LCD with Resistive 5-wire / Projected Capacitive Touch
Onboard Intel® 6th Generation Core™ Processor U Series (15W)
2x DDR4 SO-DIMM Socket, Support Up to 32 GB
Integrated Intel® HD Graphics 520 Support Triple Display

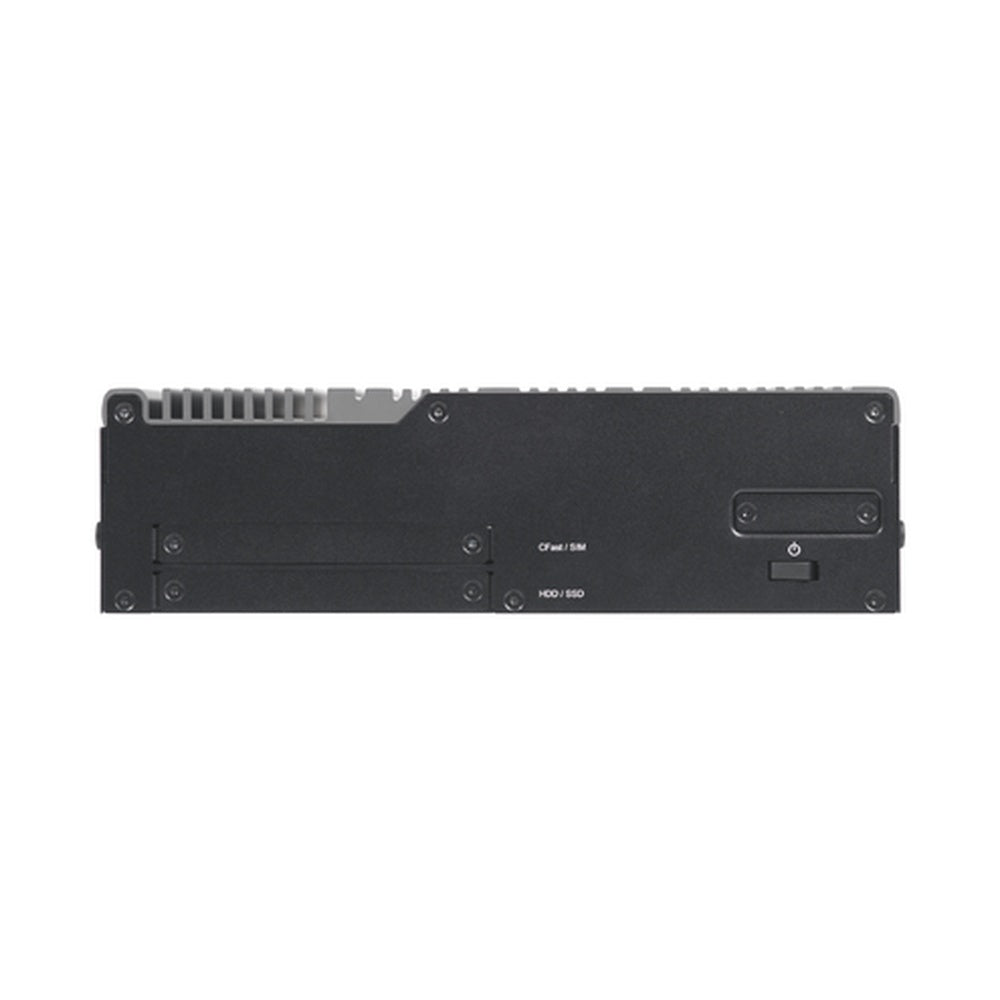

2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
IP65 Compliant Aluminum Die-Cast Front Frame
2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
Support CFM Technology for PoE and Ignition Sensing Functions
Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
Support Instant Reboot Technology
Wide Operating Temperature
SuperCap integrated for CMOS Battery Maintenance-Free
PCI/PCIe Expandable Version Available (For P2002E only)

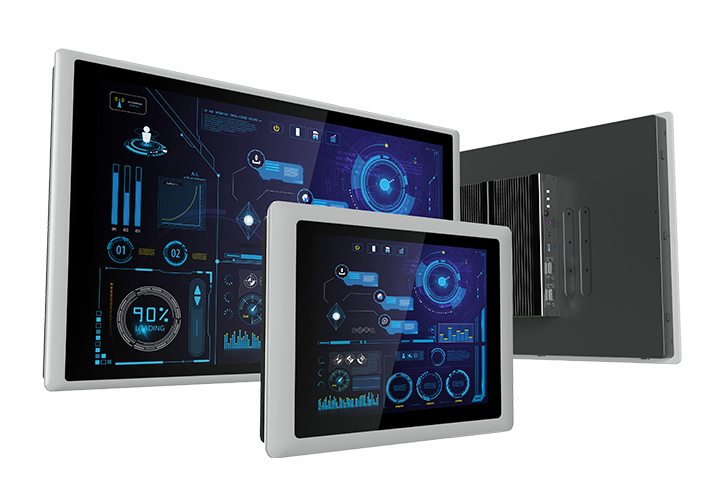

Available Sizes & Specifications

Model	Display	CPU	I/O	Expansion
CV-112H / P2002 Series	12.1" TFT 1024x768 (4:3)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-115 / P2002 Series	15" TFT 1024x768 (4:3)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-117 / P2002 Series	17" TFT 1280x1024 (5:4)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-119 / P2002 Series	19" TFT 1280x1024 (5:4)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-W115 / P2002 Series	15.6" TFT 1366x768 (16:9)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-W115FH / P2002 Series	15.6" TFT 1920x1080 (16:9)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-W121 / P2002 Series	21.5" TFT 1920x1080 (16:9)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
CV-W124 / P2002 Series	24" TFT 1920x1080 (16:9)	Intel® Core™ i5-6300U Intel® Core™ i3-6100U	1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO	2x Mini-PCIe and Support CFM (PoE, IGN) Request a Quote
