Cincoze CV-108 / P1101 Series Entry Performance Panel PC

SKU: CV-108-P1101
Starting at:
$0.00 CAD
Final pricing depends on configuration, options, and volume.
Available sizes: 21.5"
Request a Quote / More Info
Get Bulk or Volume Pricing

Call us for more info: 727-264-0930
Email: sales@smallpc.com

How to Order from SmallPC

SmallPC specializes in custom-configured rugged computing and display solutions. Our process ensures you get the right system for your environment, application, and budget.

Our Ordering Process
  1. Share Your Requirements
    Contact our team or book a free consultation to discuss your application, industry, environment, and performance needs.
  2. Configuration & Consultation
    Our experts help configure the right system, including CPU, I/O, storage, expansion, certifications, and accessories.
  3. Custom Quote
    You receive a tailored quote based on your configuration, quantity, and project timeline. Bulk and volume pricing available.
  4. Place Your Order
    Once approved, we finalize the order and begin production and fulfillment.

Book a Free Consultation

Payment Options

We accept all major credit cards and can extend terms to qualified applicants.

Delivery and Shipping

We ship worldwide! Contact us about rates or using your own account.

Description

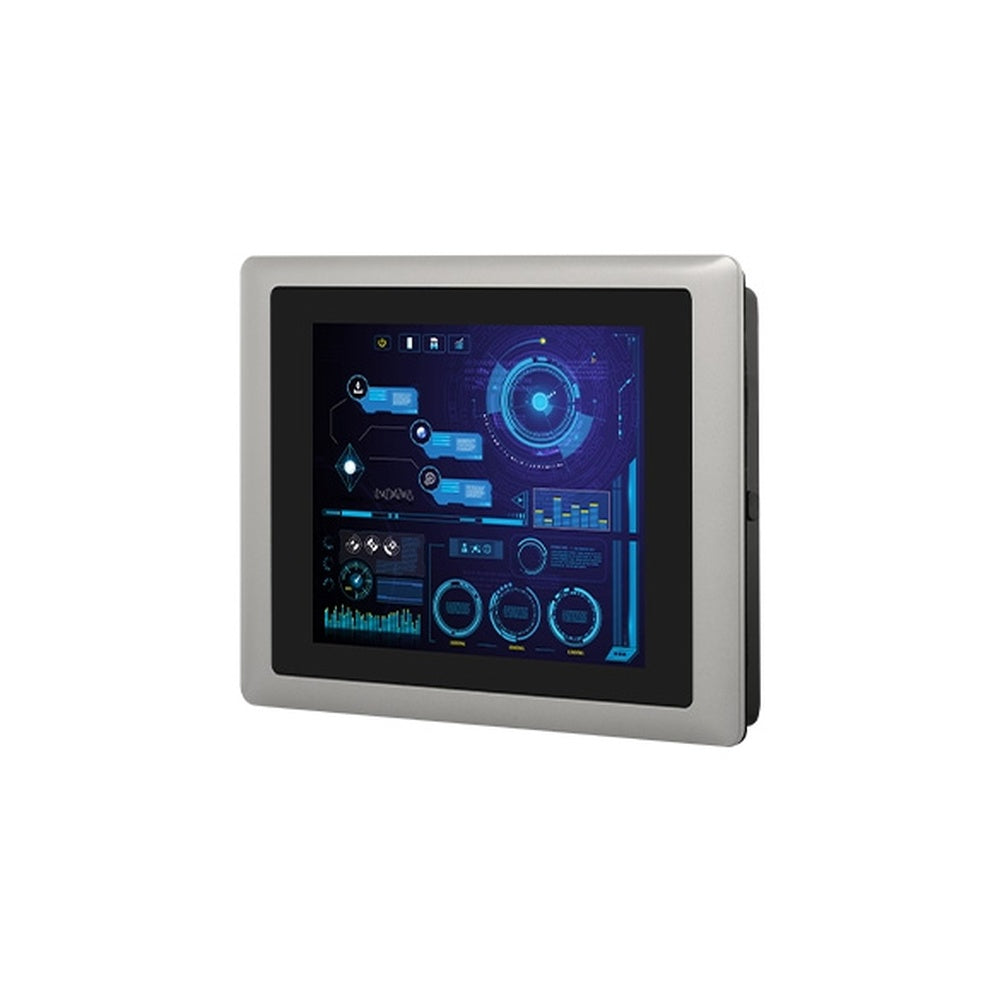

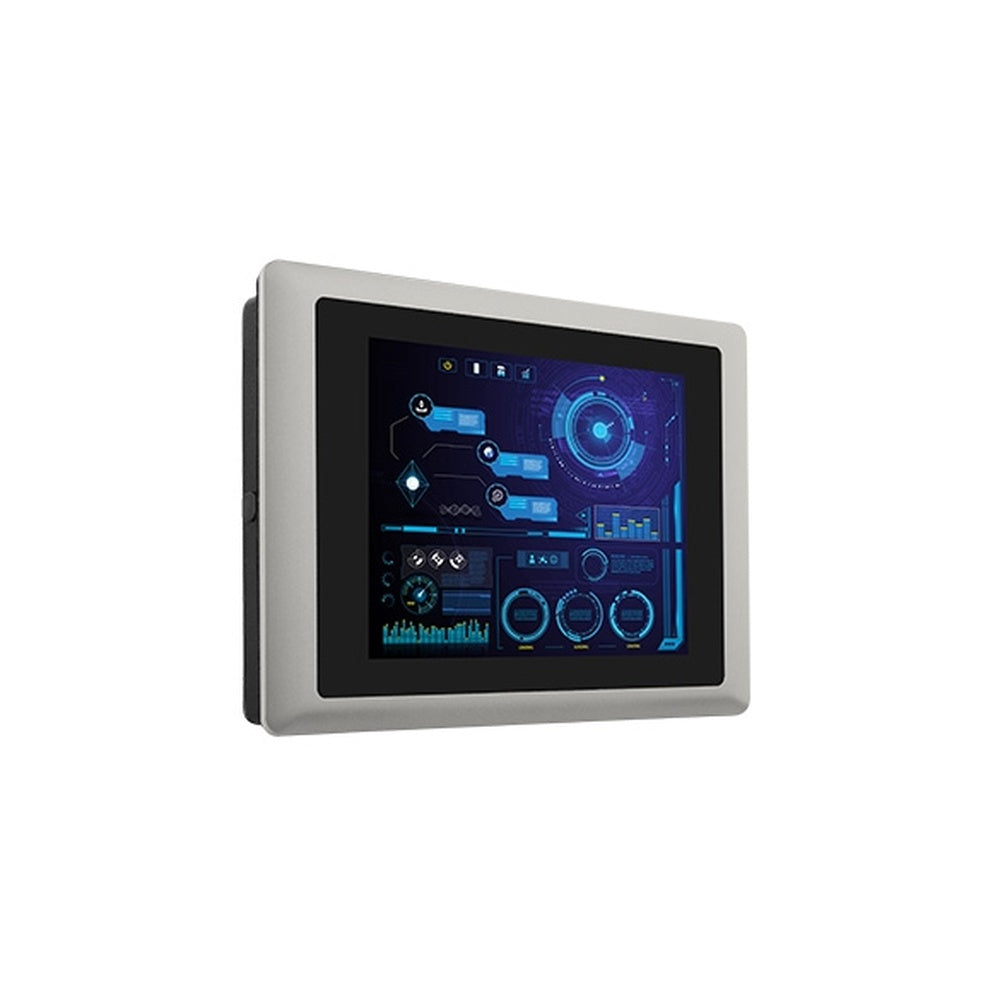

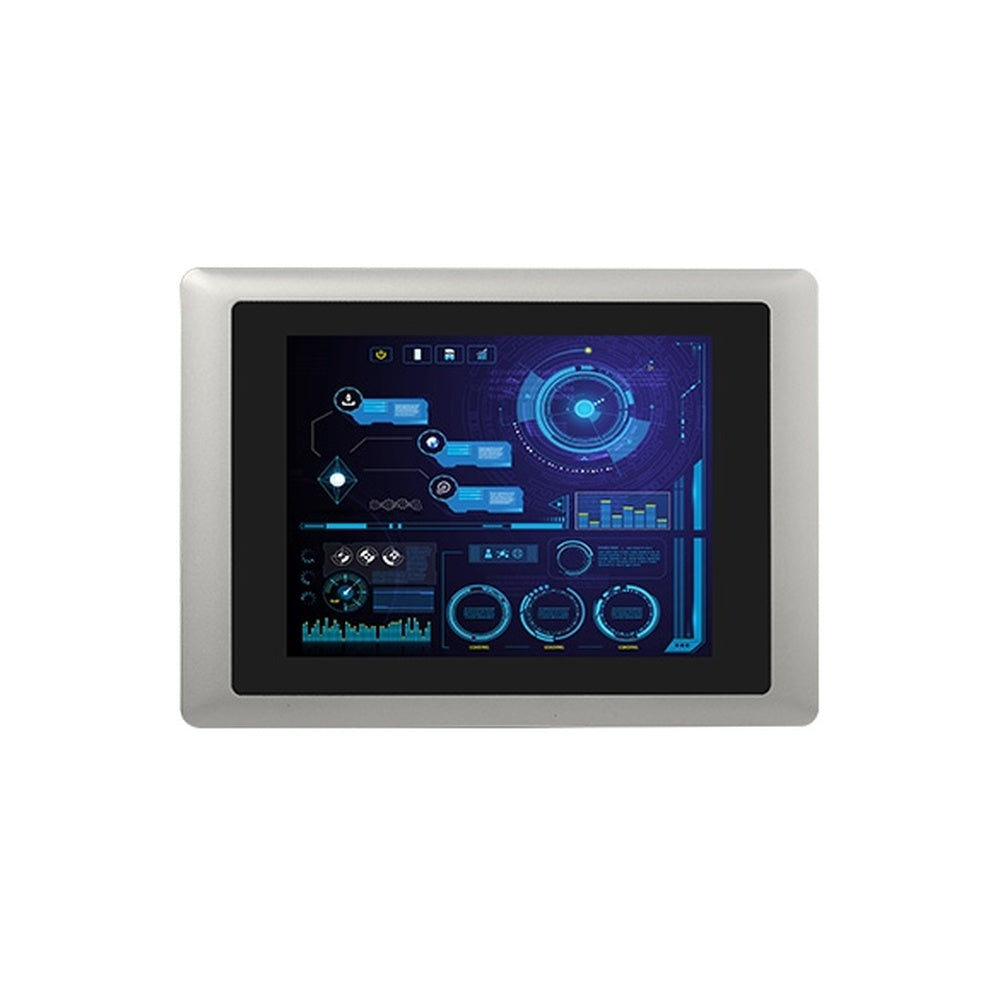

CV-108/P1101 Series is a 8.4" TFT-LCD touch panel PC offering 400 nits high brightness and 800 x 600 (SVGA) resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CV-108/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections.

Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-108/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-108/P1101 Series is appropriate for harsh environments and critical applications.

CV-108 / P1101 Series

8.4" TFT-LCD Touch Panel PC, w/ Intel® Atom® / Pentium® Processor, 4x USB, 4x COM, 1x VGA and 1x DisplayPort

PRODUCTS FEATURES

  • 8.4" TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
  • Onboard Intel® Atom® / Pentium® Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)

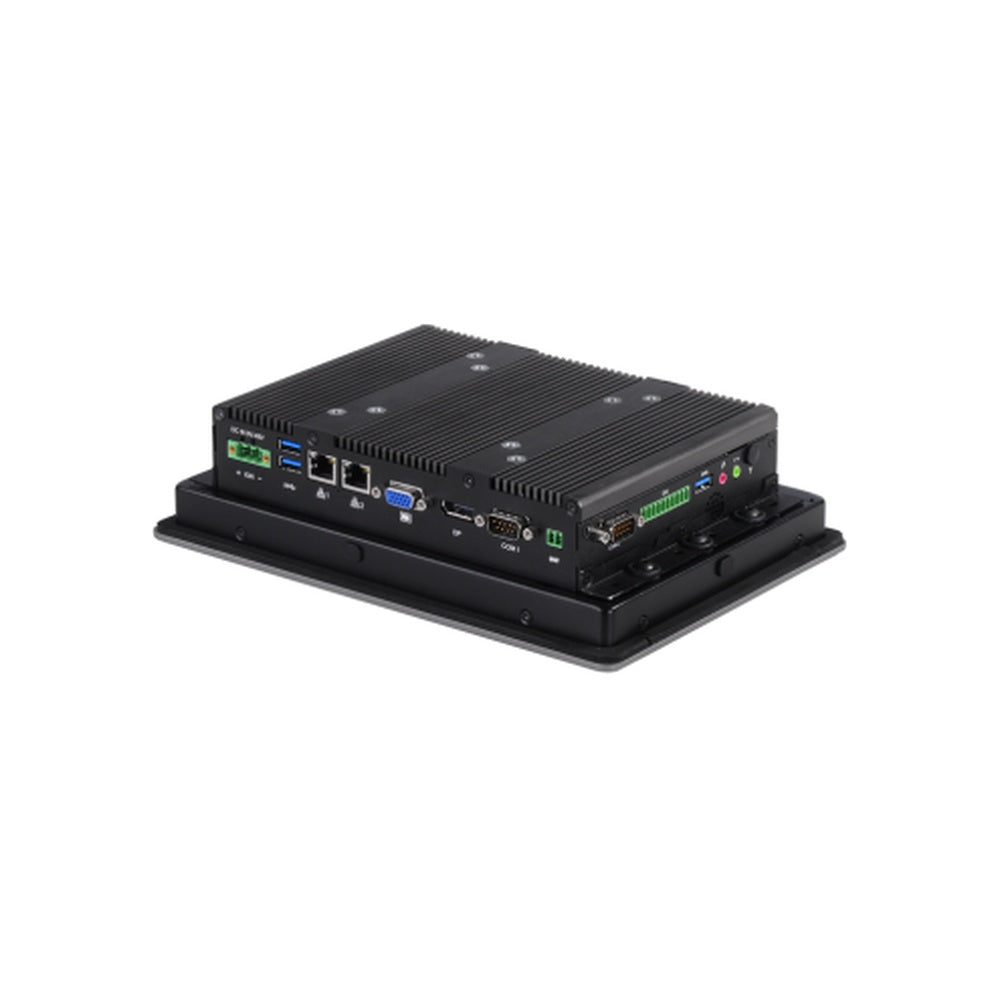

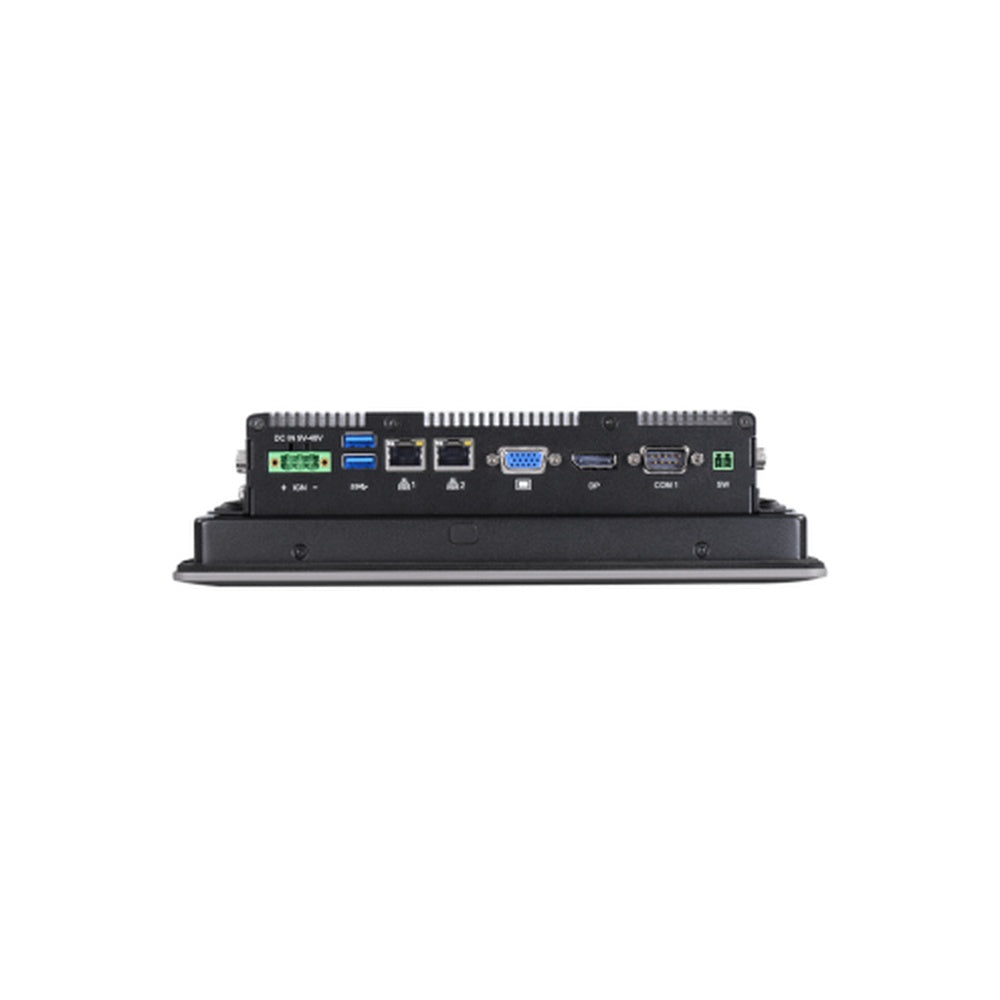

  • 2x LAN, 4x USB, 4x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • Designed with Aluminum Die-Casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet
