Cincoze CV-108 / P1001 Series Entry Performance Panel PC

SKU: CV-108-P1001
Starting at:
$0.00 CAD
Final pricing depends on configuration, options, and volume.
Available sizes: 21.5"
Request a Quote / More Info
Get Bulk or Volume Pricing

Call us for more info: 727-264-0930
Email: sales@smallpc.com

How to Order from SmallPC

SmallPC specializes in custom-configured rugged computing and display solutions. Our process ensures you get the right system for your environment, application, and budget.

Our Ordering Process
  1. Share Your Requirements
    Contact our team or book a free consultation to discuss your application, industry, environment, and performance needs.
  2. Configuration & Consultation
    Our experts help configure the right system, including CPU, I/O, storage, expansion, certifications, and accessories.
  3. Custom Quote
    You receive a tailored quote based on your configuration, quantity, and project timeline. Bulk and volume pricing available.
  4. Place Your Order
    Once approved, we finalize the order and begin production and fulfillment.

Book a Free Consultation

Payment Options

We accept all major credit cards and can extend terms to qualified applicants.

Delivery and Shipping

We ship worldwide! Contact us about rates or using your own account.

Description

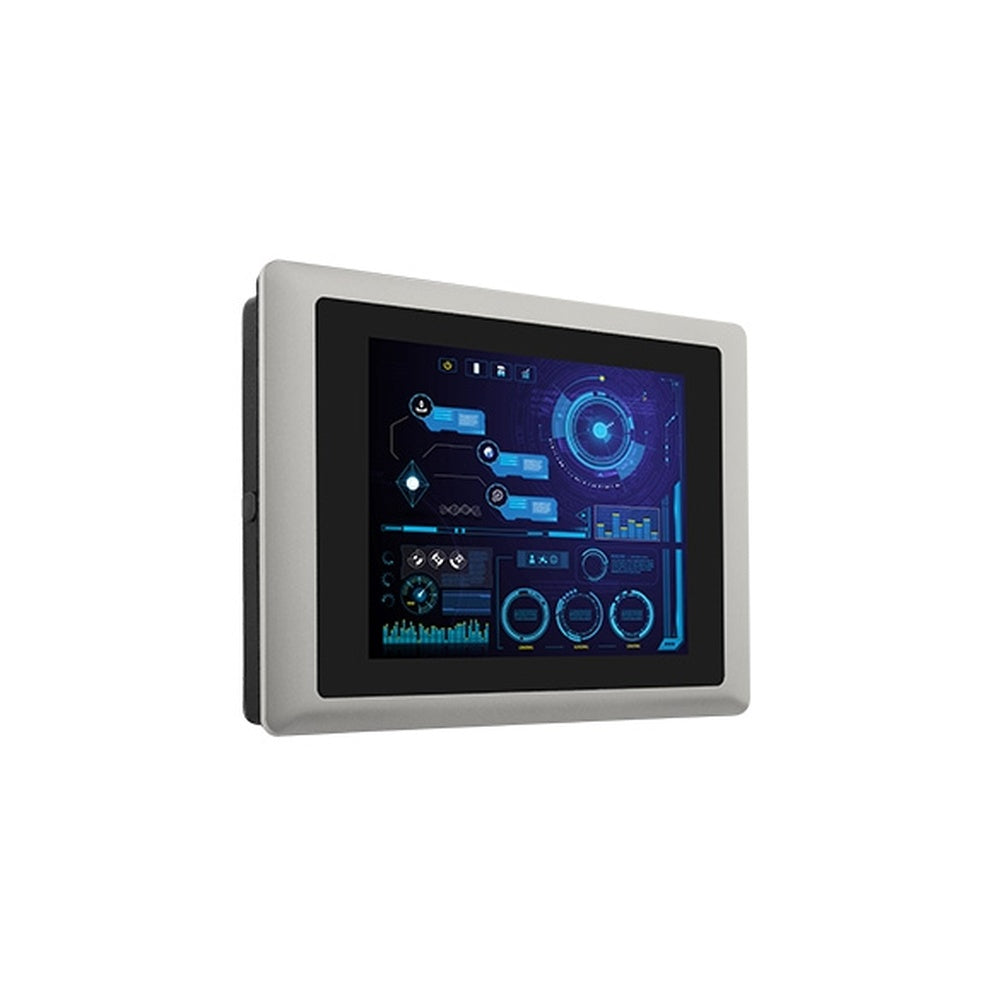

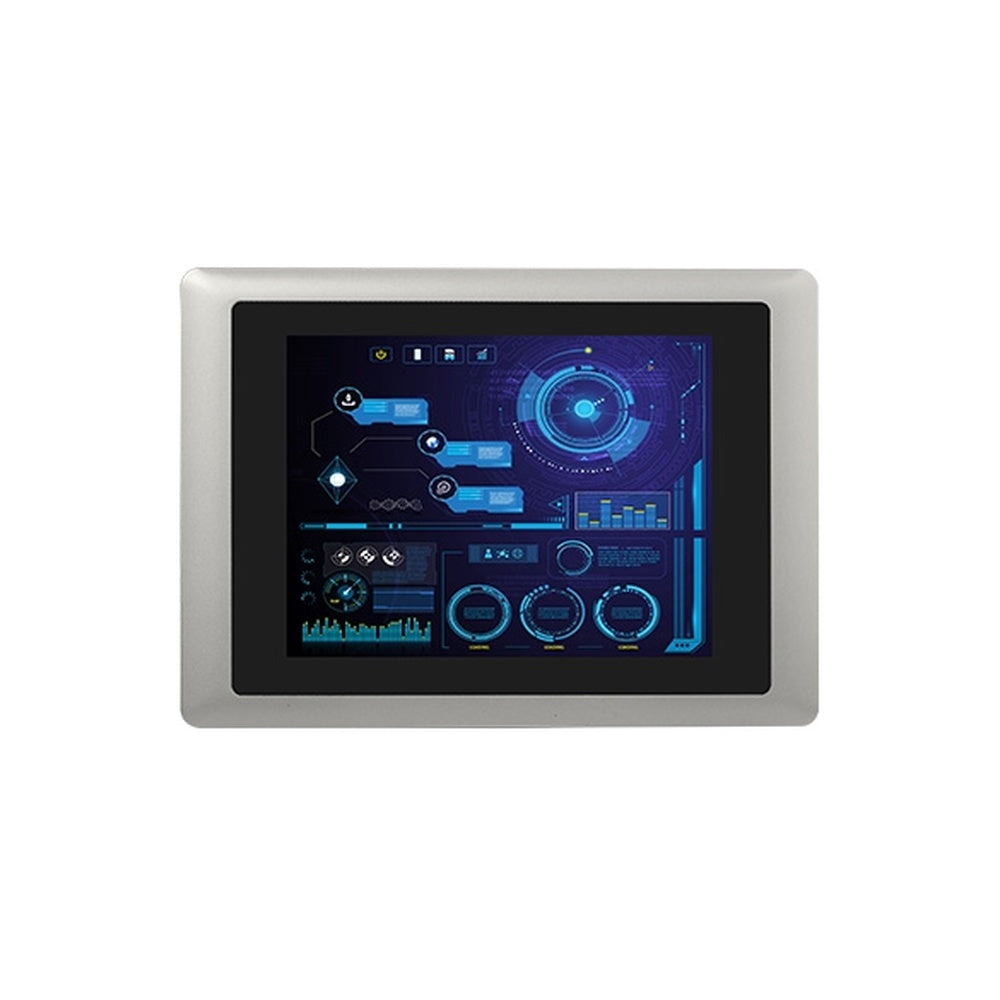

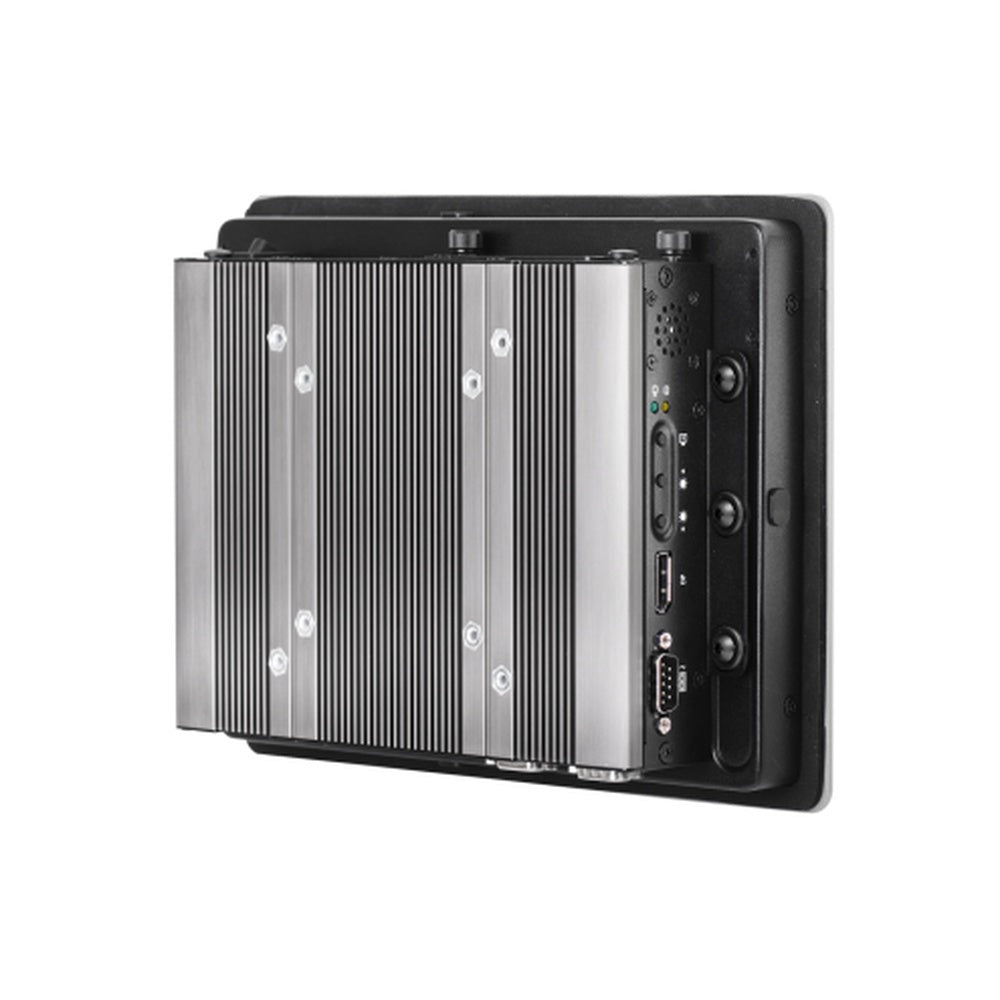

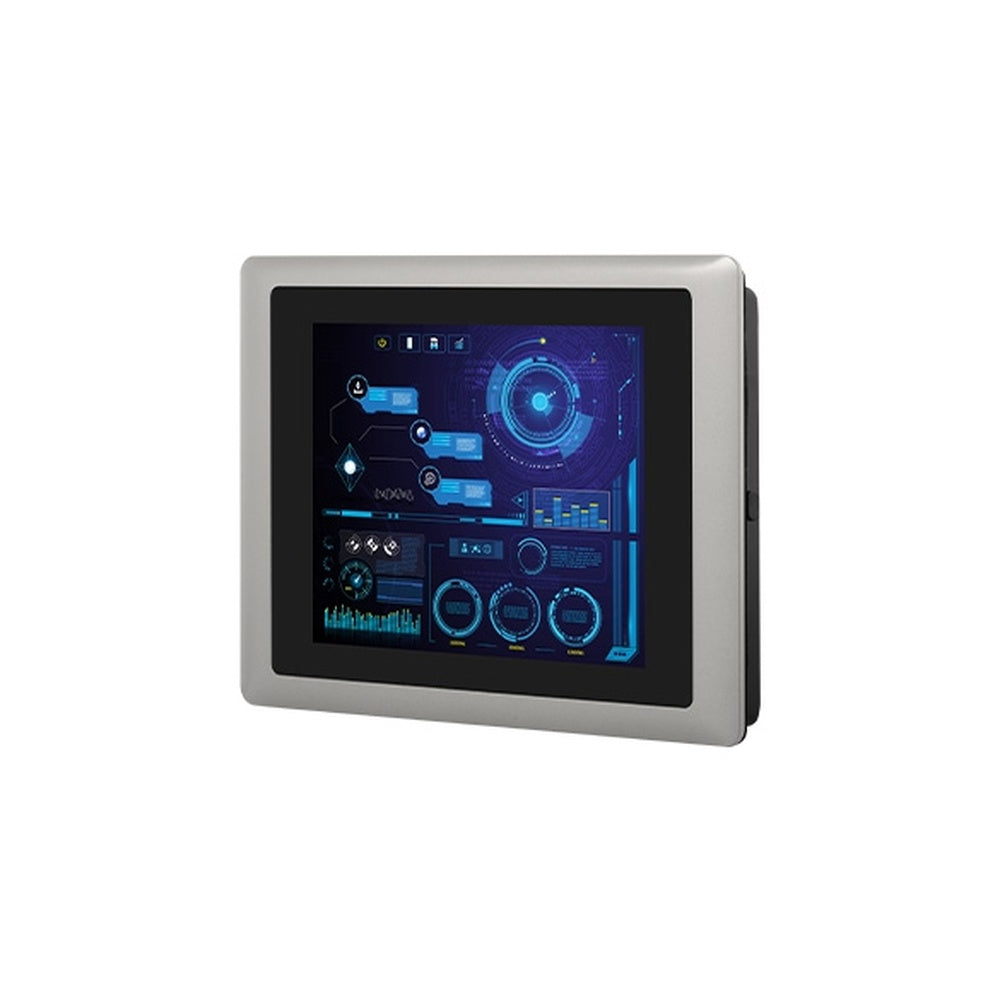

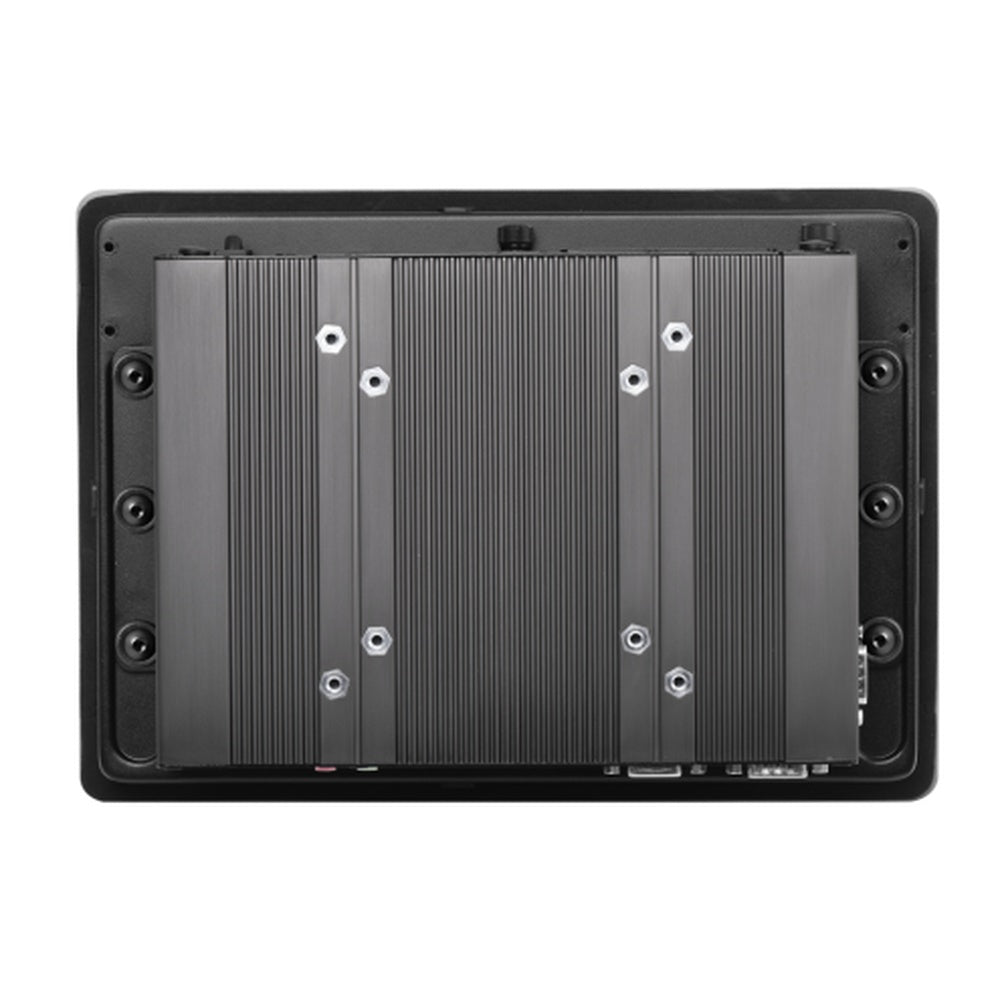

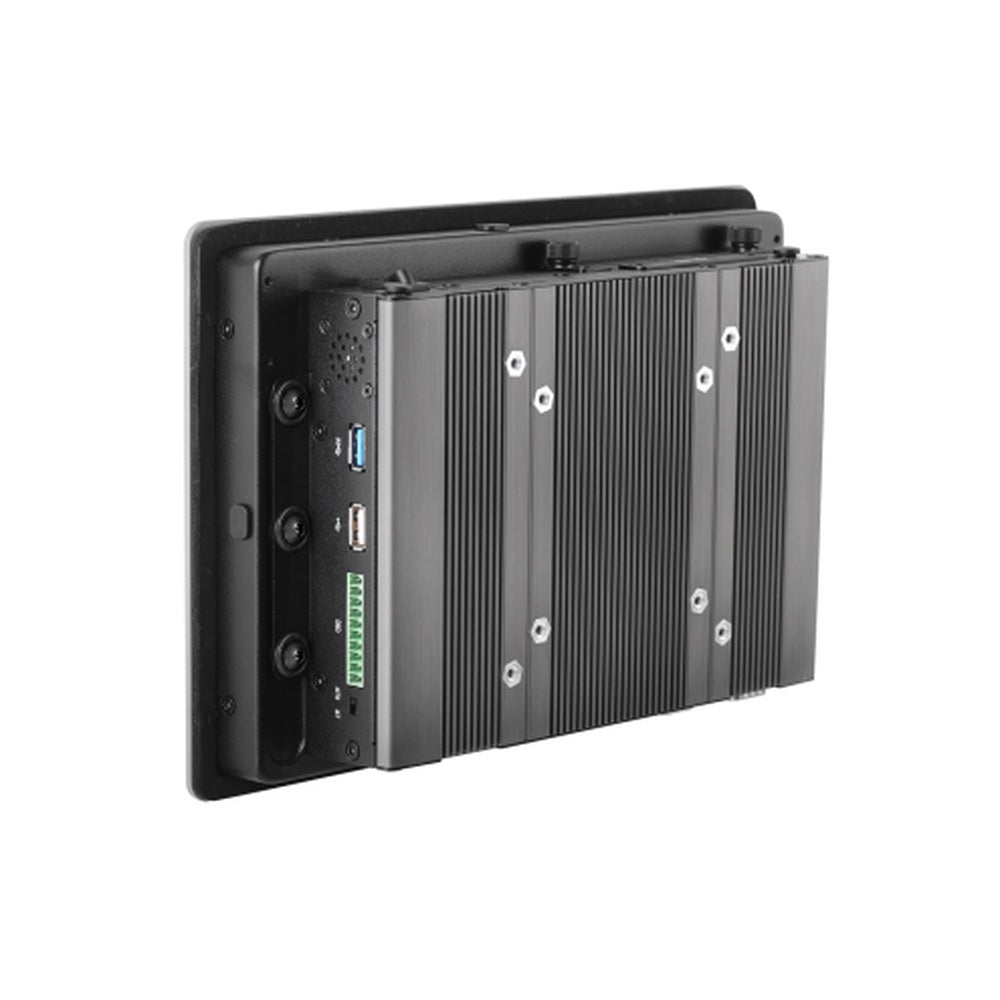

The 8.4“ all-in-one panel PC offers LED backlight LCD with resolution up to 800x600 (SVGA) and 400 nits brightness. CV-108/P1001 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-108/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-108/P1001 Series carries single touch function with resistive 5-wire touch screen or multi-touch function with projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-108/P1001 Series offers extensive I/O including 4x USB, 2x RS232/422/485, 1x VGA, 1x DisplayPort and 4 DI / 4DO. Besides, the panel PC also includes 2x Universal I/O Bracket. (For P1001E only)

CV-108/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices, including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-108/P1001 Series can be deployed and powered for various industrial applications.

CV-108 / P1001 Series

8.4" TFT SVGA 4:3 Panel PC, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort

PRODUCTS FEATURES

  • 8.4" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Casting Front Frame
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM max. up to 8GB
  • 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket
  • IP 65 Compliant Front Panel
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 2W Internal Speaker
  • 2x Universal I/O Bracket (For P1001E only)
