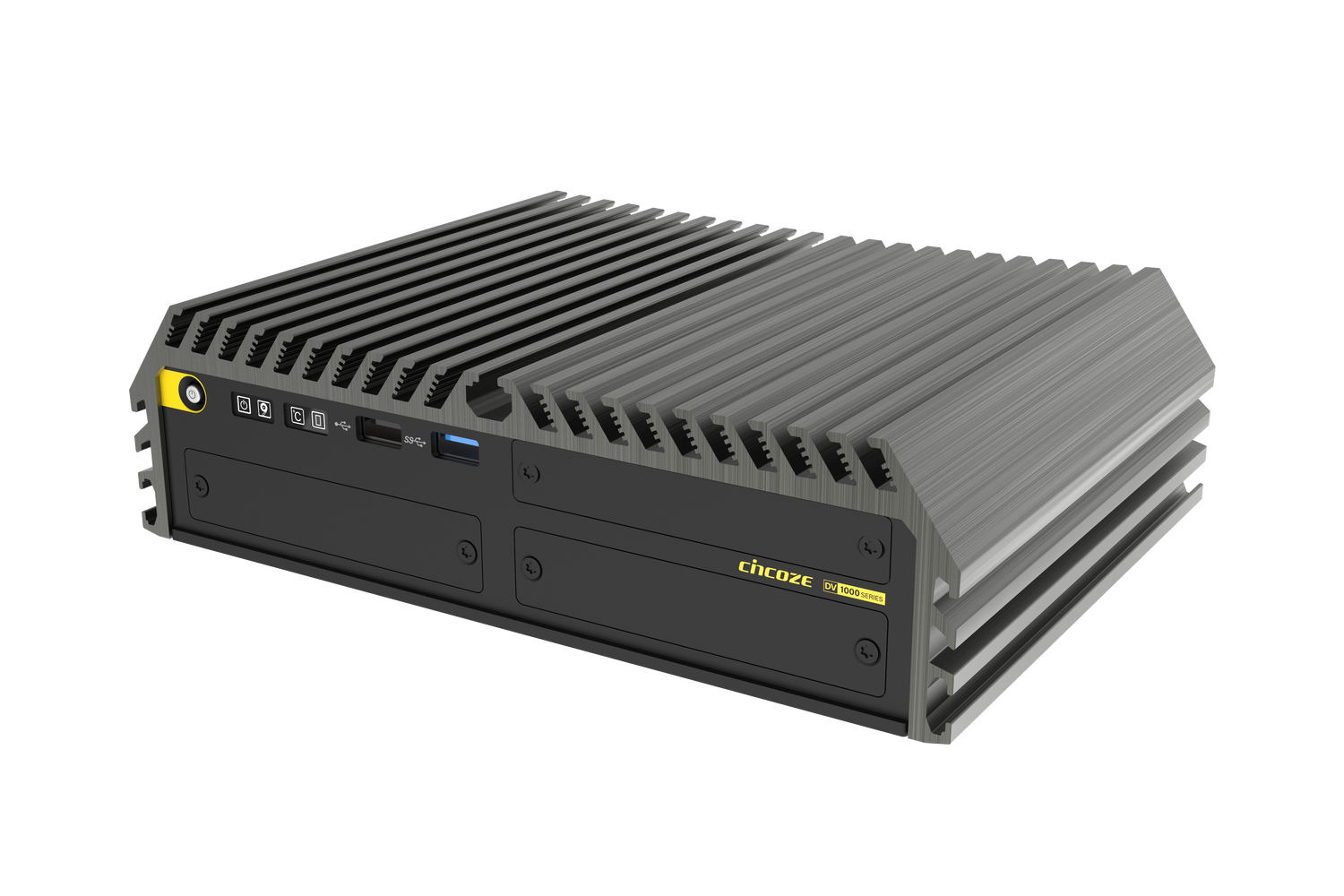

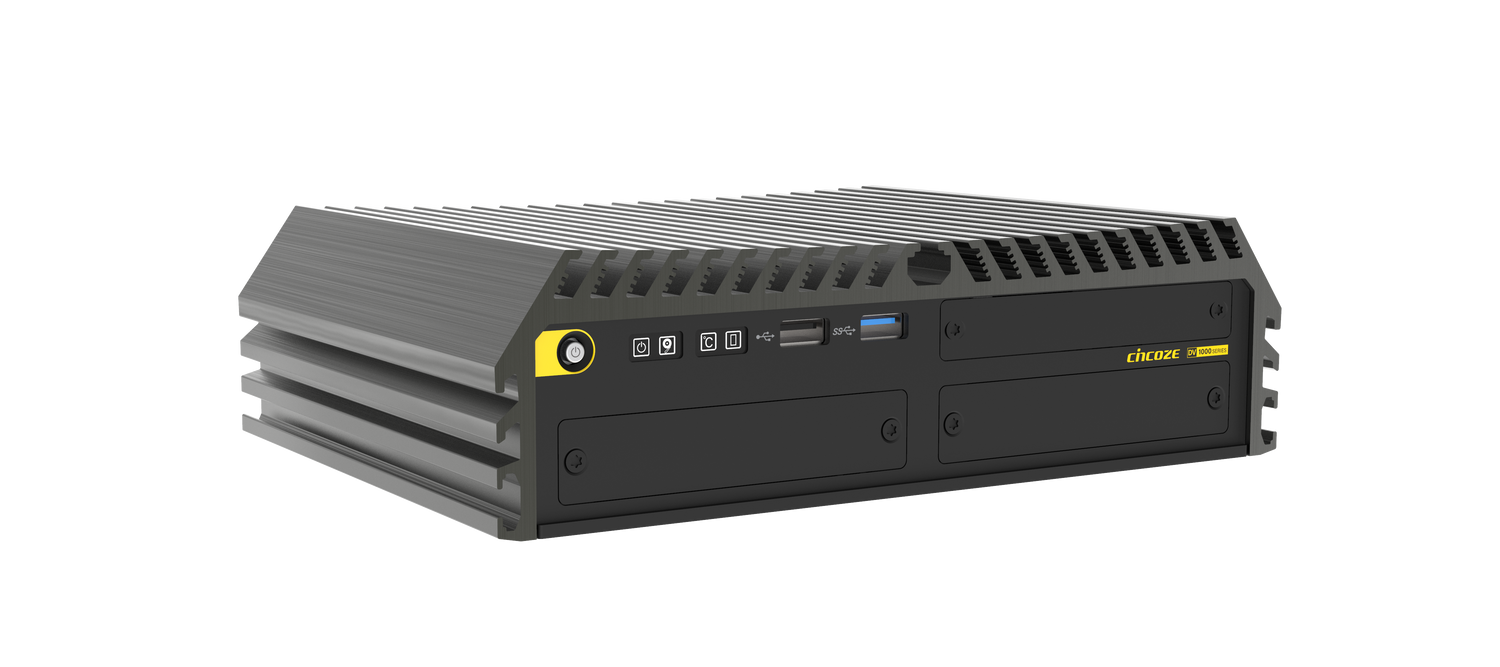

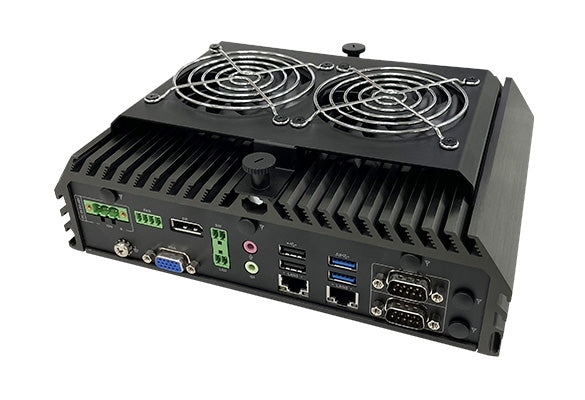

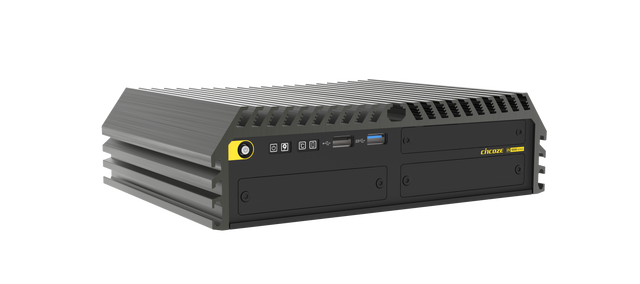

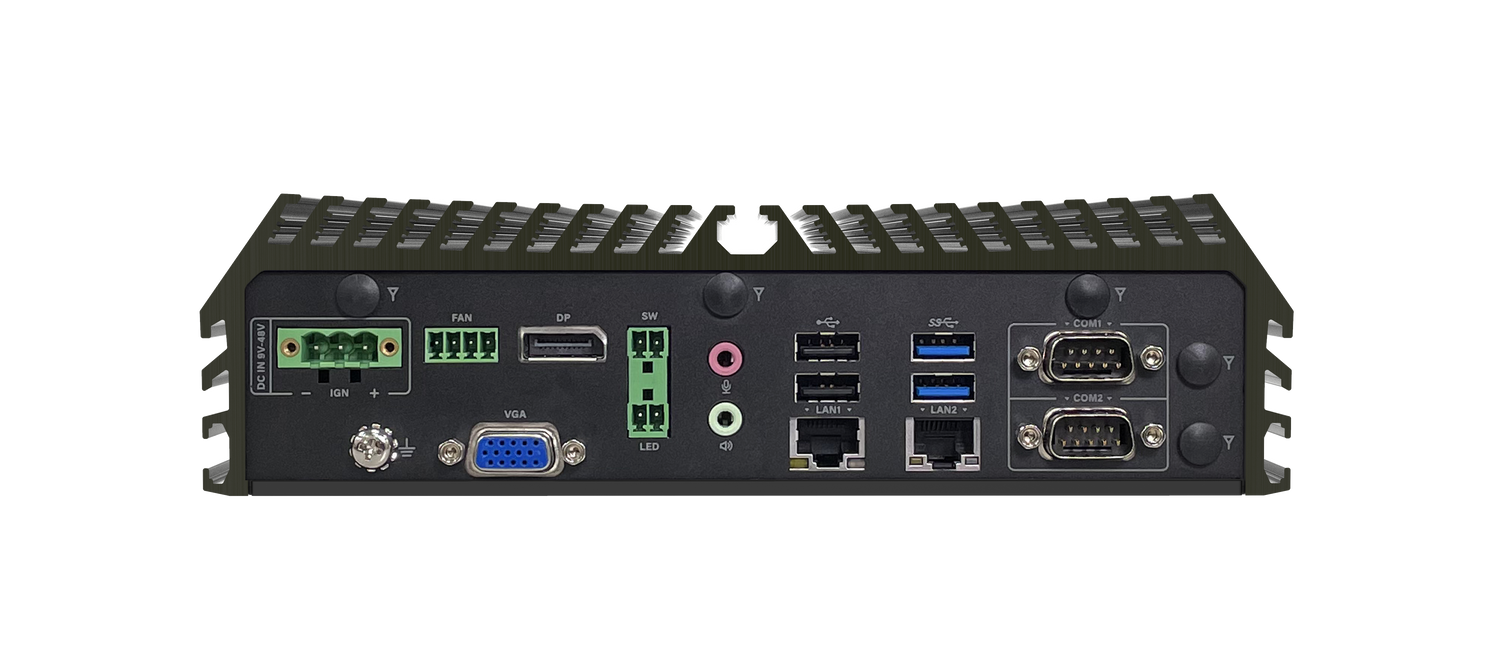

DV-1000 Industrial Edge PC


9/8th Gen. Intel® Core™ Series High Performance and Essential Rugged Embedded Computer

PRODUCTS FEATURES
  • Supports 9/8th Gen Intel® Core™ i7/i5/i3 or Pentium®/Celeron® processors (up to 65W)
  • Compact size (224 x 162 x 64 mm)
  • 1 x M.2 2280 key M socket, auto-detection for NVMe/SATA SSD
  • 1 x M.2 2230 key E for Intel® CNVi/wireless module
  • 2 x Full-size Mini PCIe sockets for module expansion
  • Optional CMI/MEC modules for I/O expansion
  • Wide operating temperature: -40°C to 70°C
  • Military standard (MIL-STD-810G) shock & vibration proof
  • Railway EMC standard EN50155 (EN 50121-3-2 only) certified

Strong Computing Power

The DV-1000 features a 9/8th Generation Intel® Core™ i7/i5/i3 (Coffee Lake-R S series) processor and Intel® H310 chipset, supporting up to 32 GB of DDR4 2666 MHz memory. The DV-1000 provides plenty of power for heavy multitasking workloads and applications.

Expandable Extra I/O and Functionality

For adding extra I/O or functions Cincoze offers proprietary Combined Multiple I/O (CMI) modules, Control Function Module (CFM), and also Mini-PCIe Expansion Card Module (MEC). The CMI modules support HDMI, DisplayPort, COM and DIO, MEC modules support GbE LAN and USB expansion, and CFM modules have IGN function.

The DV-1000 is suitable for various industries, including:

  • Industrial Automation: Machine control and monitoring systems
  • Warehousing and Logistics: Automated guided vehicles (AGVs) and inventory management
  • Transportation: Fleet management and in-vehicle computing
  • Environmental Monitoring: Data collection and analysis in harsh environments
  • IoT Applications: Edge computing and real-time data processing
