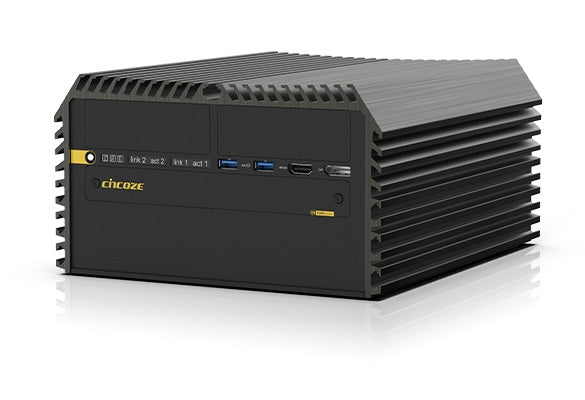

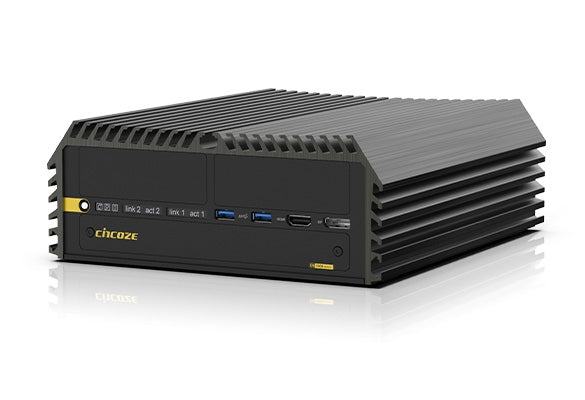

DS-1300 High Performance Expandable Industrial PC


10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer and PCIe Expandable Rugged Embedded Computer, Supports up to 2x PCI/PCIe Expansion Slot

Product Features

  • 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
  • Up to 2x PCI/PCIe expansion slots
  • 3x full-size Mini PCIe sockets, 2x SIM card slots
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)

Industrial I/O and Modular Expansion

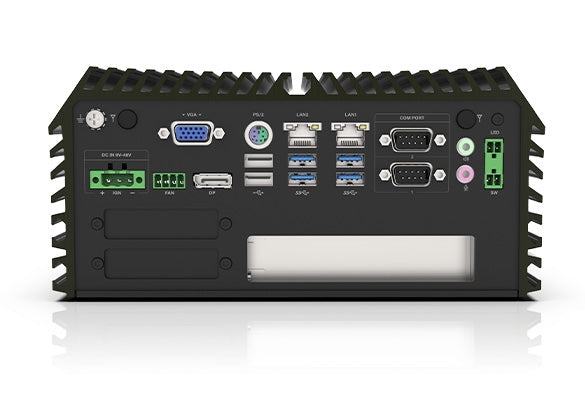

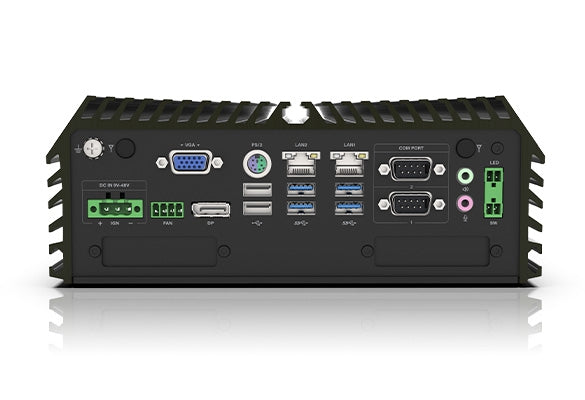

The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.

PCI/PCIe Add-on Cards

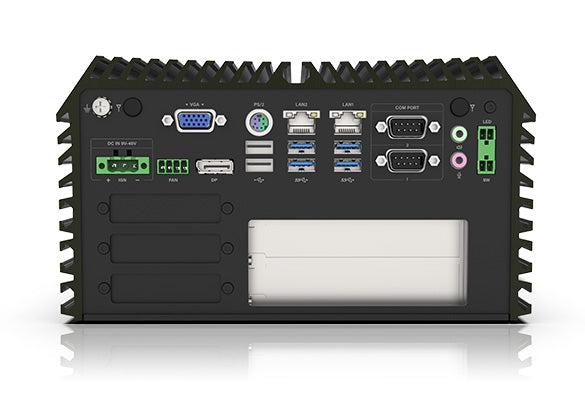

DS-1300 Series can accommodate up to dual PCI/PCIe add-on cards up to 111 mm x 235 mm (combined max 110 W). Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications.
