DA-1200-AI Industrial Edge PC with Hailo VPU
SKU:
DA-1200-AI Industrial Edge PC with Hailo VPU is backordered and will ship as soon as it is back in stock.
Compact, Fanless Industrial Edge AI Computer

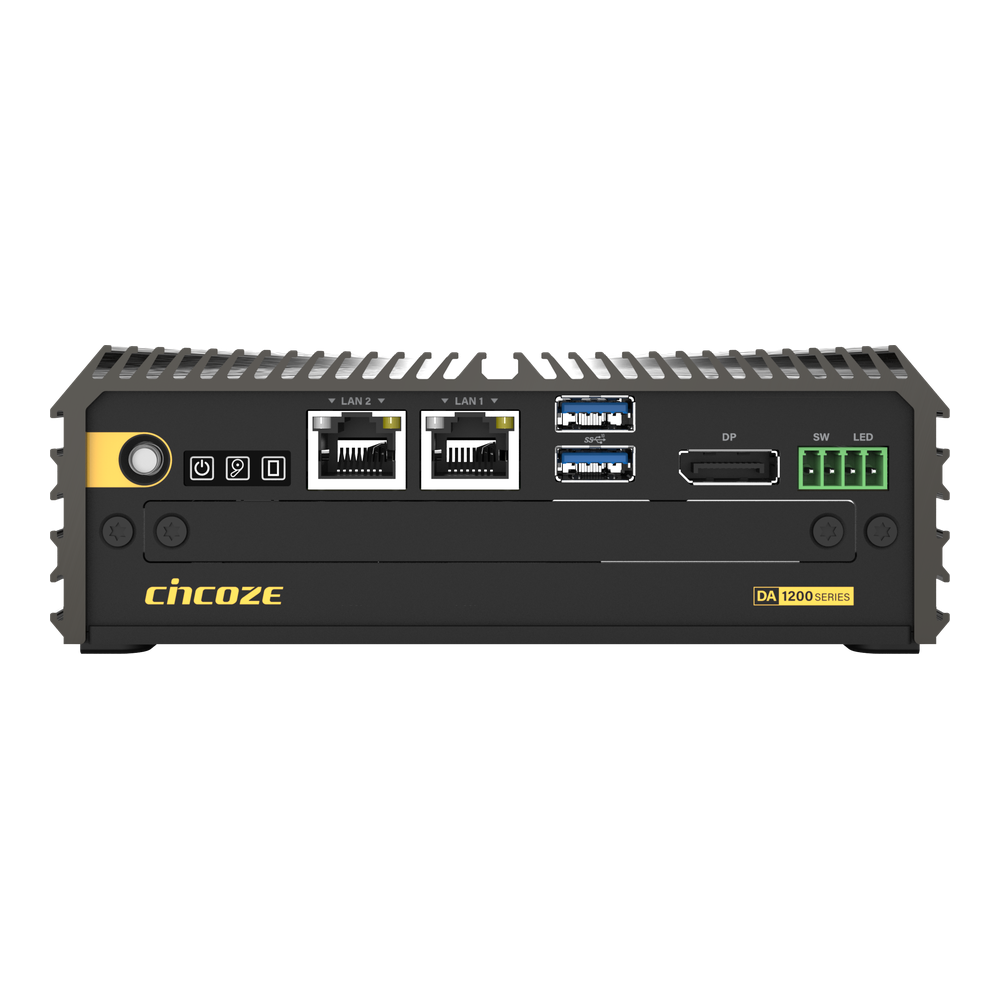

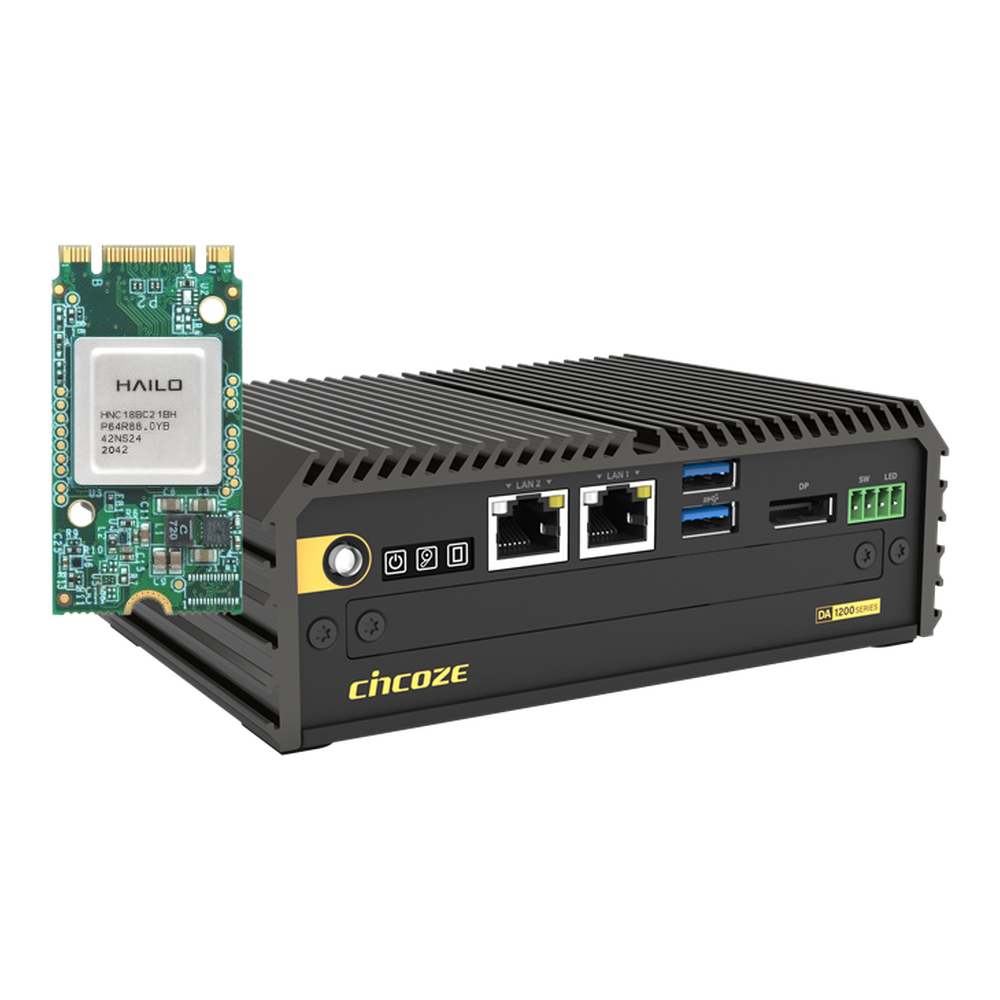

The DA-1200-N97-R10-AI is a fanless embedded AI computer designed for industrial machine vision applications on the edge. Built around the Intel Alder Lake N97 processor and the Hailo-8™ M.2 AI Acceleration VPU, it delivers efficient computing and neural processing power in a compact, rugged chassis, making it an ideal choice for smart manufacturing, packaging, quality control, and other factory automation.
Key Features
- Intel Alder Lake-N97 Processor – Ensures efficient processing for industrial tasks

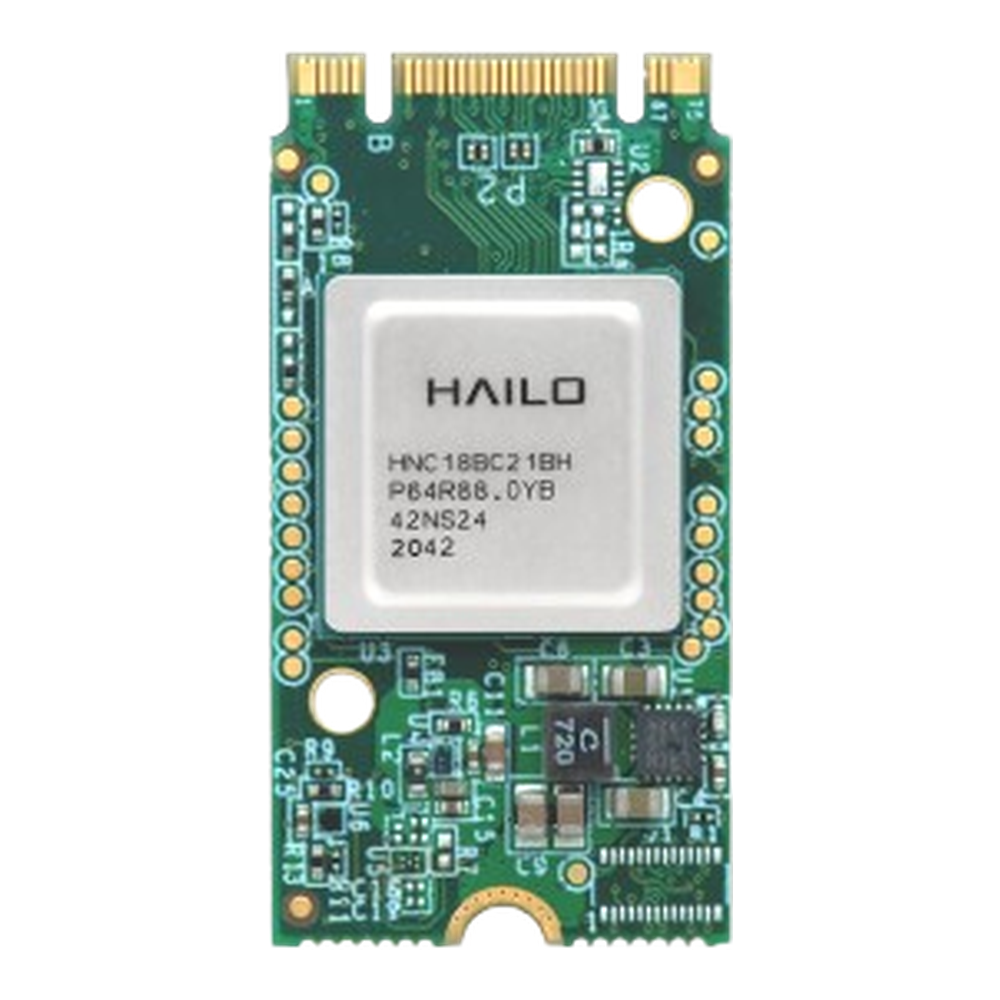

- Hailo-8™ M.2 AI Acceleration Module - 26 TOPS AI Computing delivered in just 2.5W
- Fanless Design – Passive cooling for silent and reliable operation.
- Compact Form Factor – (150 x 105 x 52.3 mm), ideal for space-constrained environments.
- Versatile Mounting Options – Supports wall, side, and DIN rail mounting for flexible installation.
- Wide Operating Temperature Range – -40°C to 70°C, suitable for harsh environments.
- Modular Expansion – Includes two M.2 Key B slots for storage/wireless modules and a CMI interface for additional I/O expansion.
| Specifications | |
|---|---|
| CPU/VPU | Intel Alder Lake-N97 with Hailo-8 VPU |
| Memory | Supports up to 16GB DDR5 4800MHz SO-DIMM |
| Storage | Supports 2.5" SATA HDD/SSD or half-slim SSD |
| Networking | Dual 2.5GbE LAN ports for high-speed connectivity |
| Display Output | 1 x DisplayPort (up to 4096 x 2304 @ 60Hz) |
| USB Ports | 2 x USB 3.2 Gen2 (10Gbps) |
| Expansion | 2 x M.2 Key B slots, 1 x Universal I/O Bracket, CMI interface for additional I/O |

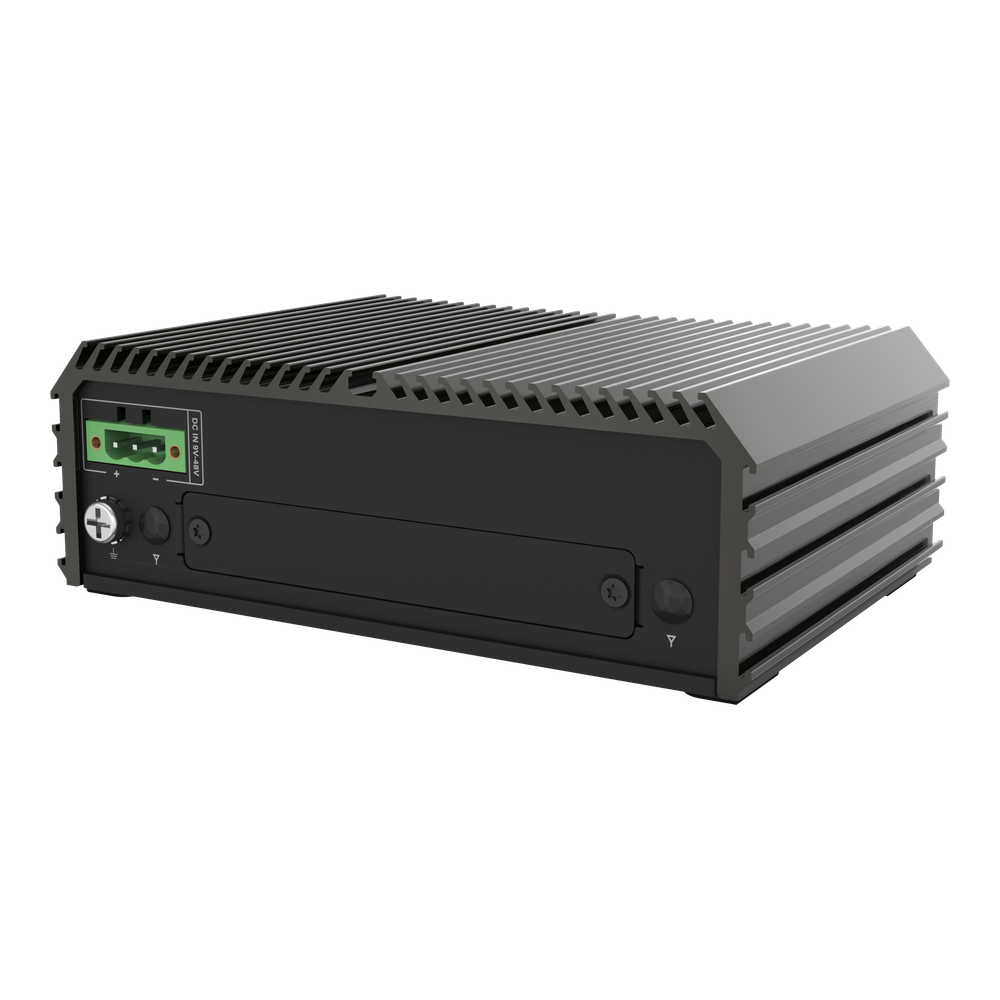

| Power Input | 9 to 48V DC, via 3-pin terminal block |
| Certifications | UL, cUL, CB, IEC, EN 62368-1 |
