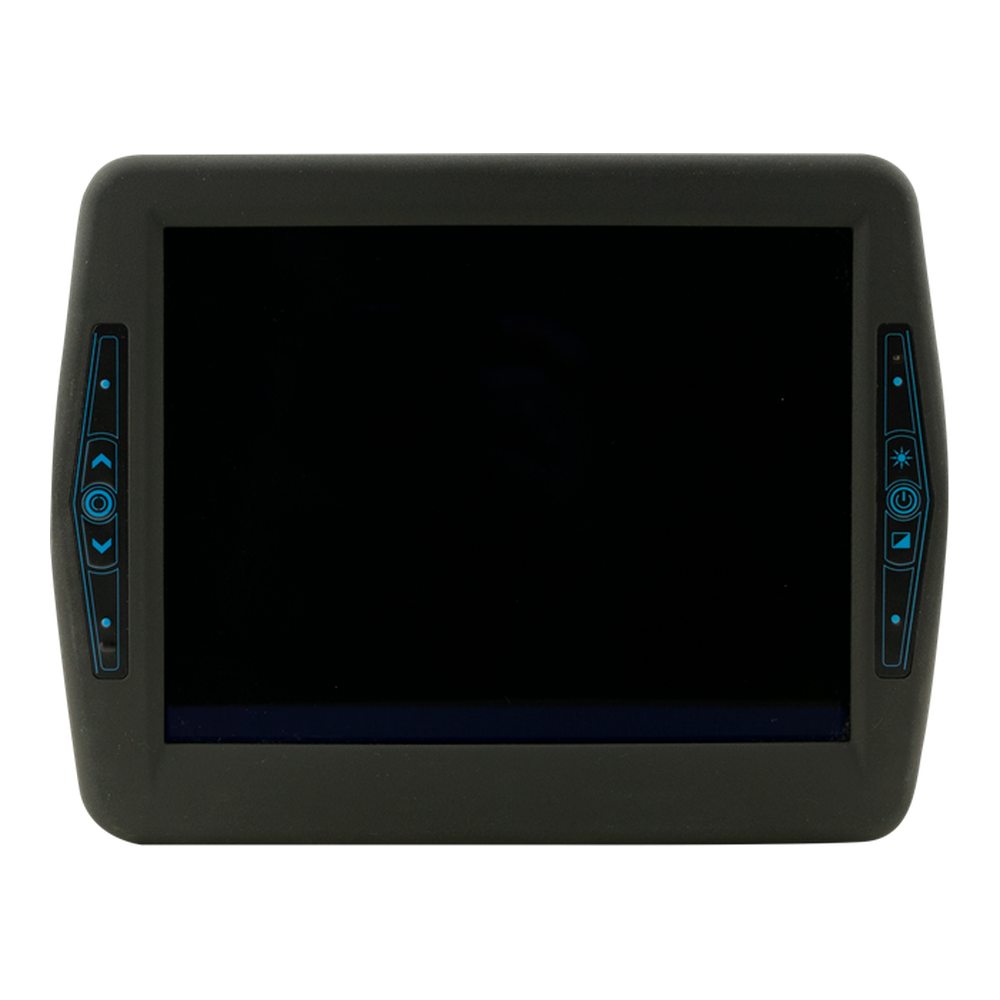

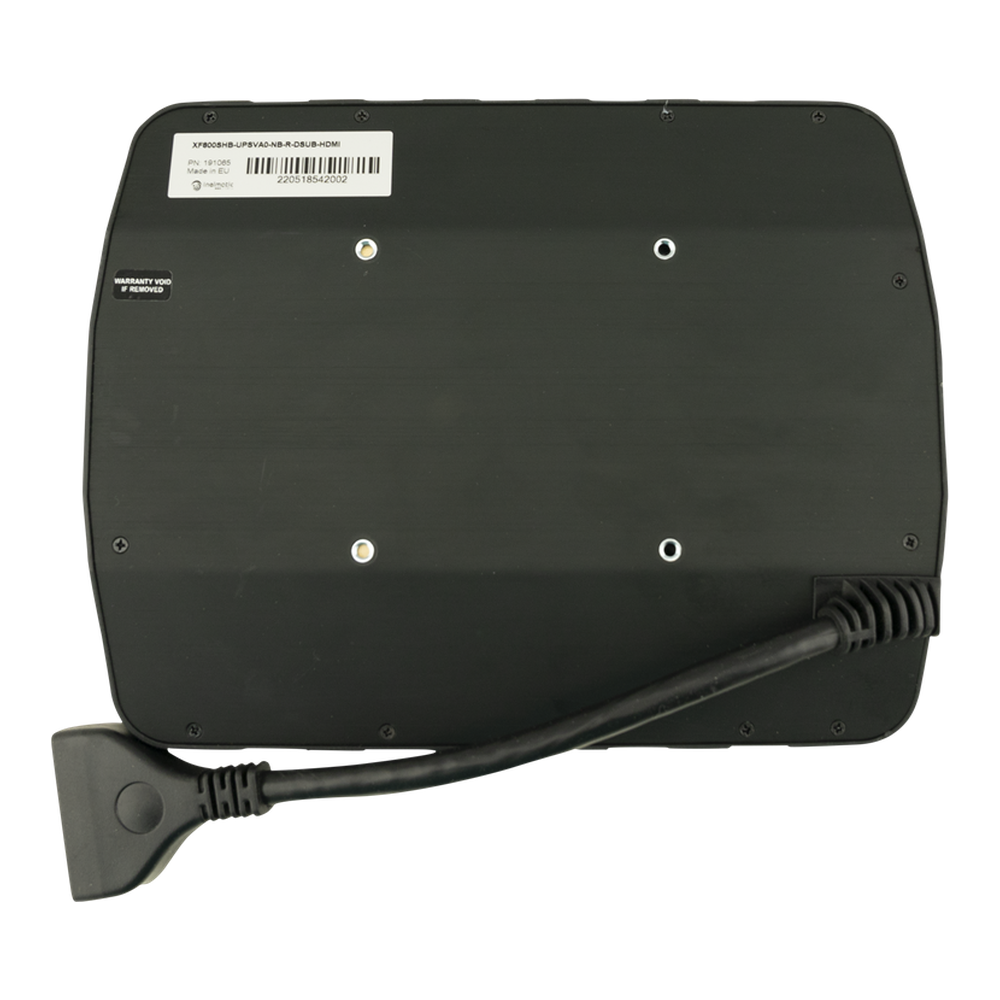

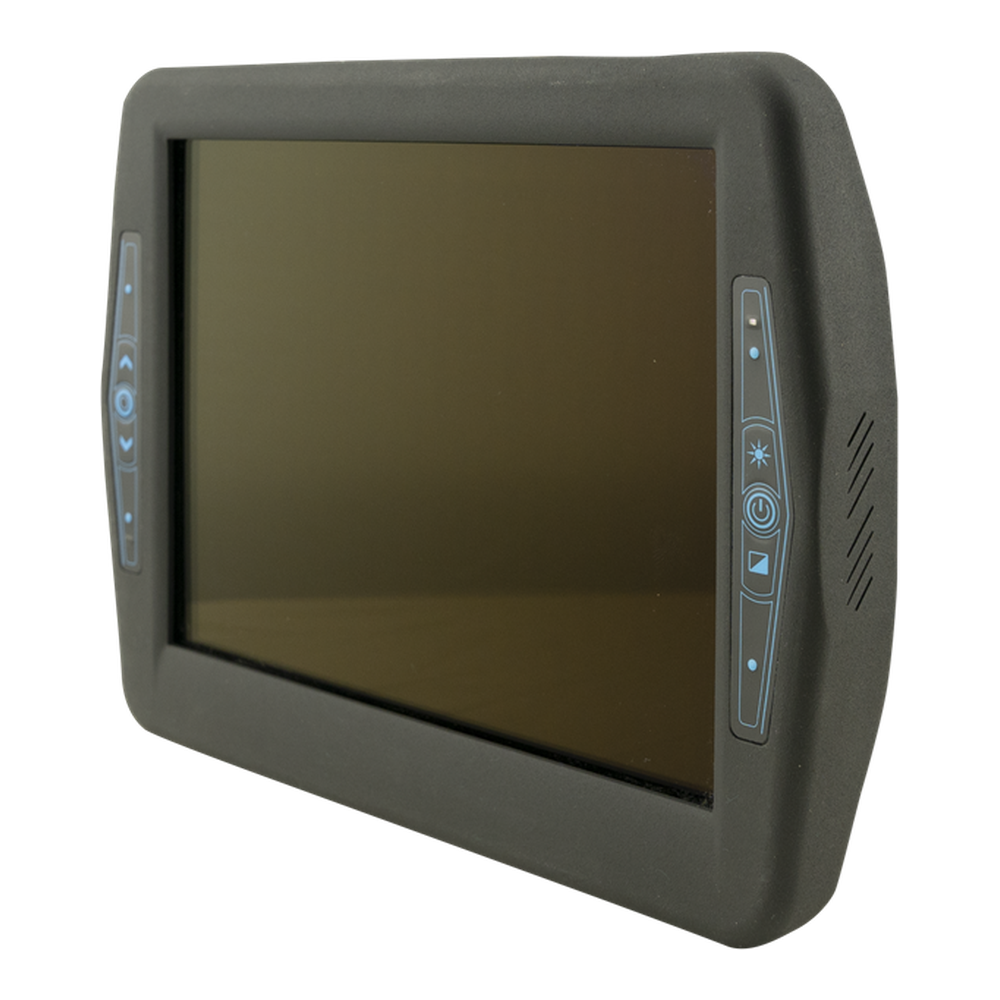

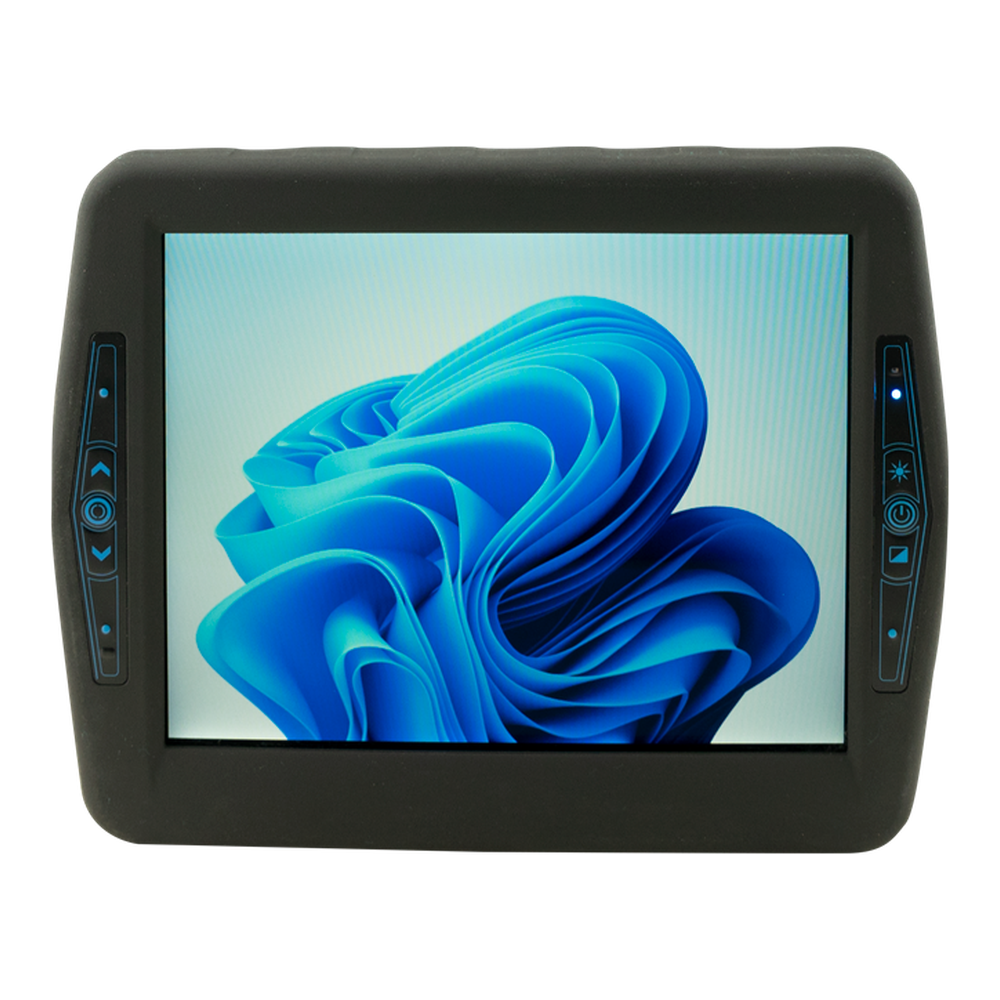

SunVu 8X Vehicle Display

SKU: RWD085P

Semi-rugged 8" Sunlight Readable LCD with IP65 rating, 4:3 aspect ratio.

The SunVu 8X is a semi-rugged 8" LCD display designed to deliver exceptional performance in outdoor and vehicle environments. With a native 800x600 resolution (sync up to 1920x1440) and a 4:3 aspect ratio, this sunlight-readable screen features high-brightness 1000-nit LED backlighting and advanced optical enhancements for clear visibility in direct sunlight. Its durable, IP65-rated aluminum/PVC-ABS chassis is built to withstand demanding conditions, making it ideal for rugged applications.

Specifications:

  • Display Size: 8" LCD, 4:3 aspect ratio
  • Resolution: 800x600 (native), sync up to 1920x1440
  • Brightness: 1000 nits with low-power LED backlights
  • Touch Screen Options: 4-wire resistive (>2M endurance) or projected capacitive
  • Inputs: HDMI, 2 composite video inputs, USB for touch
  • Power Consumption: 8-12W (typical)
  • Contrast Ratio: 500:1
  • Audio: 2 x 1.8W stereo speakers
  • Construction: Aluminum/PVC-ABS chassis
  • Mounting: VESA mounting, 75mm (M4)
  • Cable: 4.5m all-in-one cable (optional 2.5m available)
  • Rugged Standards: Shock: 20G, 11ms (MIL-STD-810F 516.5); Vibration: 1G, 2-500Hz (MIL-STD-810F 514.5)
  • Ingress Protection: IP65 (IEC-529)
  • Operating Temperature: -20°C to 60°C
  • Certifications: CE
