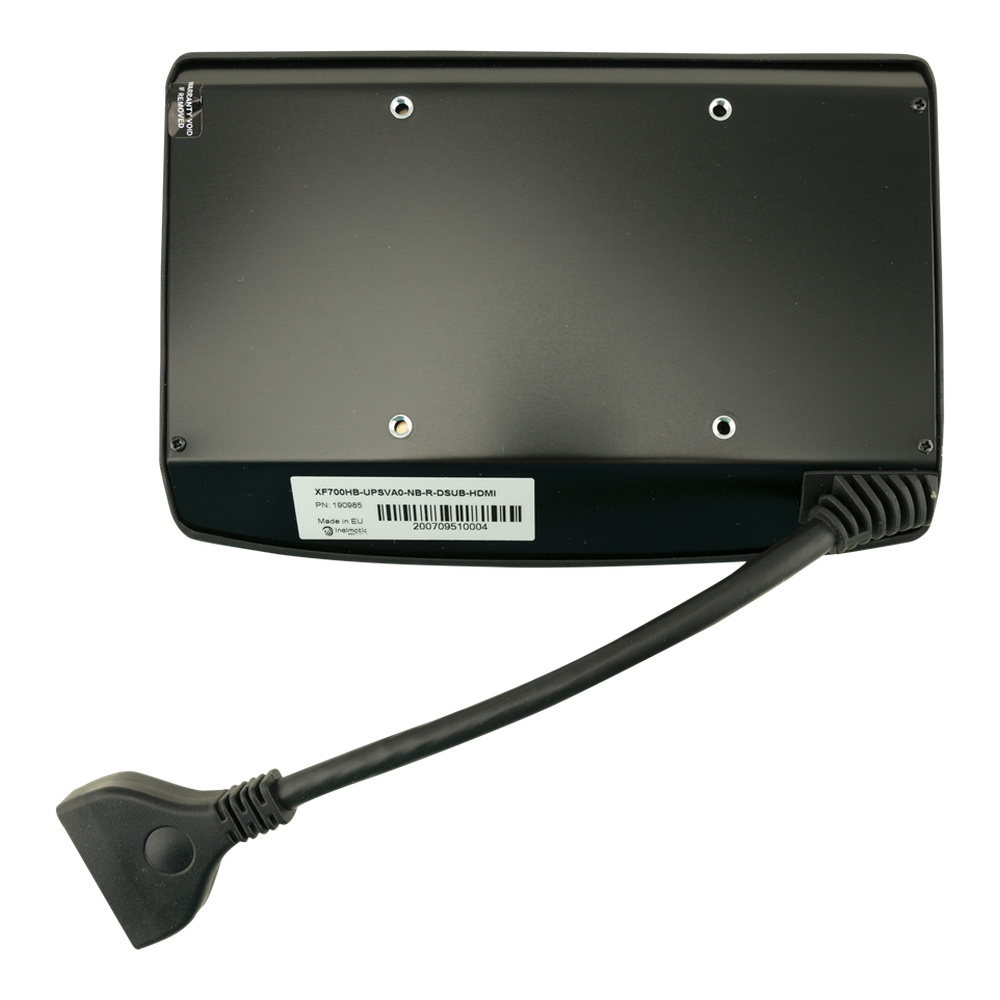

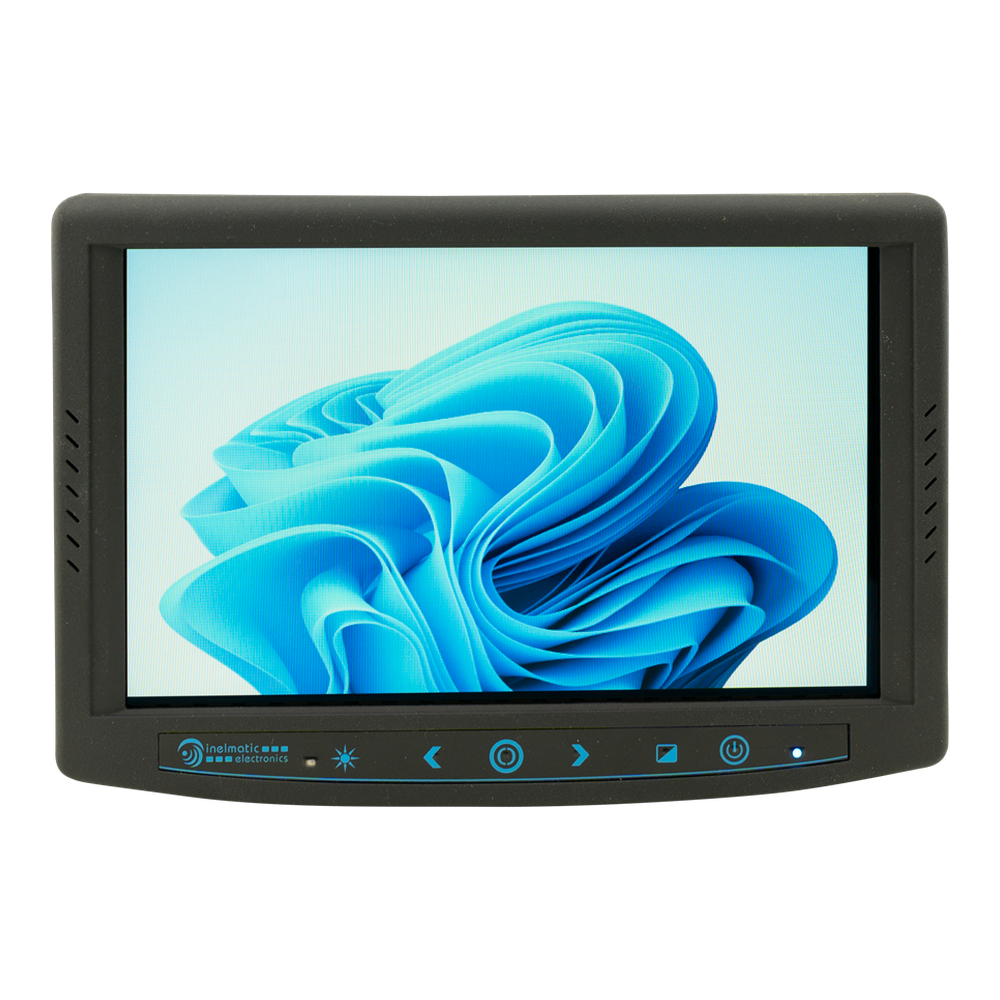

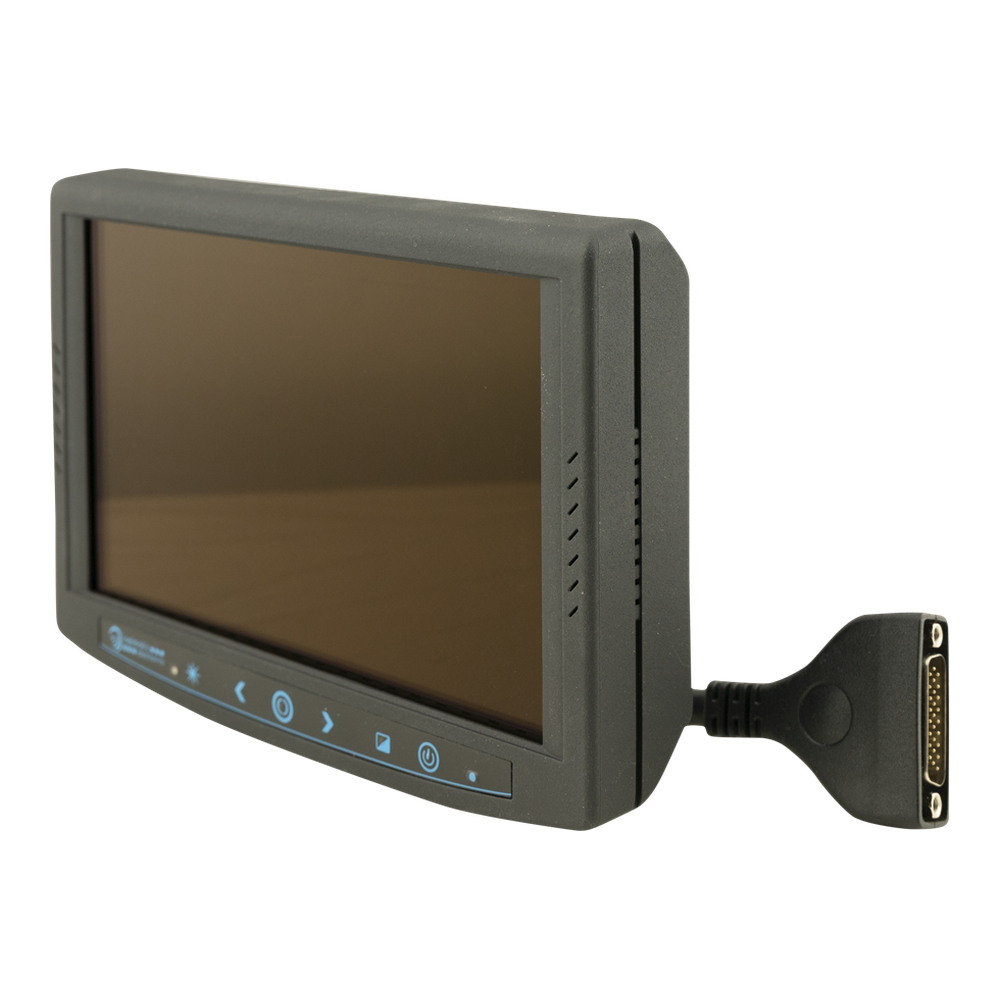

SunVu 7X Vehicle Display

The SunVu 7X is a semi-rugged 7" Sunlight Readable LCD designed to deliver exceptional clarity and sharpness even in direct sunlight. Engineered with an IP65-rated chassis made of durable PVC and ABS, this display is ideal for outdoor or vehicle applications. Featuring high-brightness 1000-nit LED backlighting and advanced optical enhancements, it ensures excellent visibility in bright conditions. Its robust design is complemented by options for resistive or projected capacitive touch screens, making it highly versatile.

With native 640x480 resolution (up to 1024x768 sync), the SunVu 7X offers various input options, including VGA, HDMI, and composite video. It supports 6-32V DC input for vehicle power and includes a 2.5m all-in-one cable to simplify connectivity and installation. Built for reliability, it adheres to MIL-STD-810F standards for shock and vibration, making it a trusted solution for rugged environments.

Specifications

• Display Size: 7" LCD, 4:3 aspect ratio
• Brightness: 1000 nits with low-power LED backlights
• Resolution: 640x480 (native), sync up to 1024x768
• Touch Screen Options: 4-wire resistive (>2M endurance) or projected capacitive
• Inputs: VGA (HD15), HDMI, 2 composite video inputs, USB for touch
• Power Supply: 6-32V DC input with protected vehicle power supply
• Power Consumption: 8-12W (typical)
• Contrast Ratio: 500:1
• Audio: 2 x 1.8W stereo speakers
• Construction: Aluminum/PVC-ABS chassis
• Mounting: VESA mounting, 75mm (M4)
• Cable: 2.5m all-in-one cable (optional 4.5m available)
• Rugged Standards: Shock: 20G, 11ms (MIL-STD-810F 516.5); Vibration: 1G, 2-500Hz (MIL-STD-810F 514.5)
• Ingress Protection: IP65 (IEC-529)
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -35°C to 85°C
• Certifications: CE
