SunVu 10XPM Vehicle or Boat Display

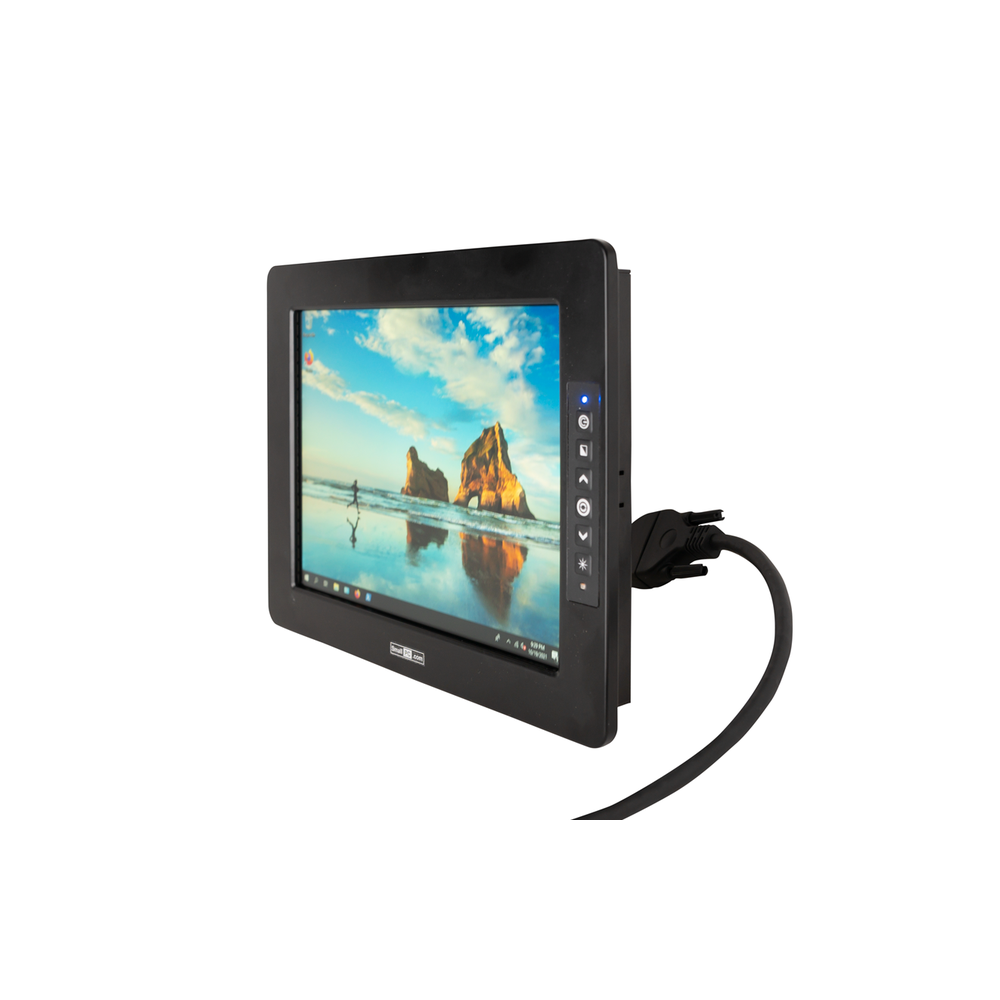

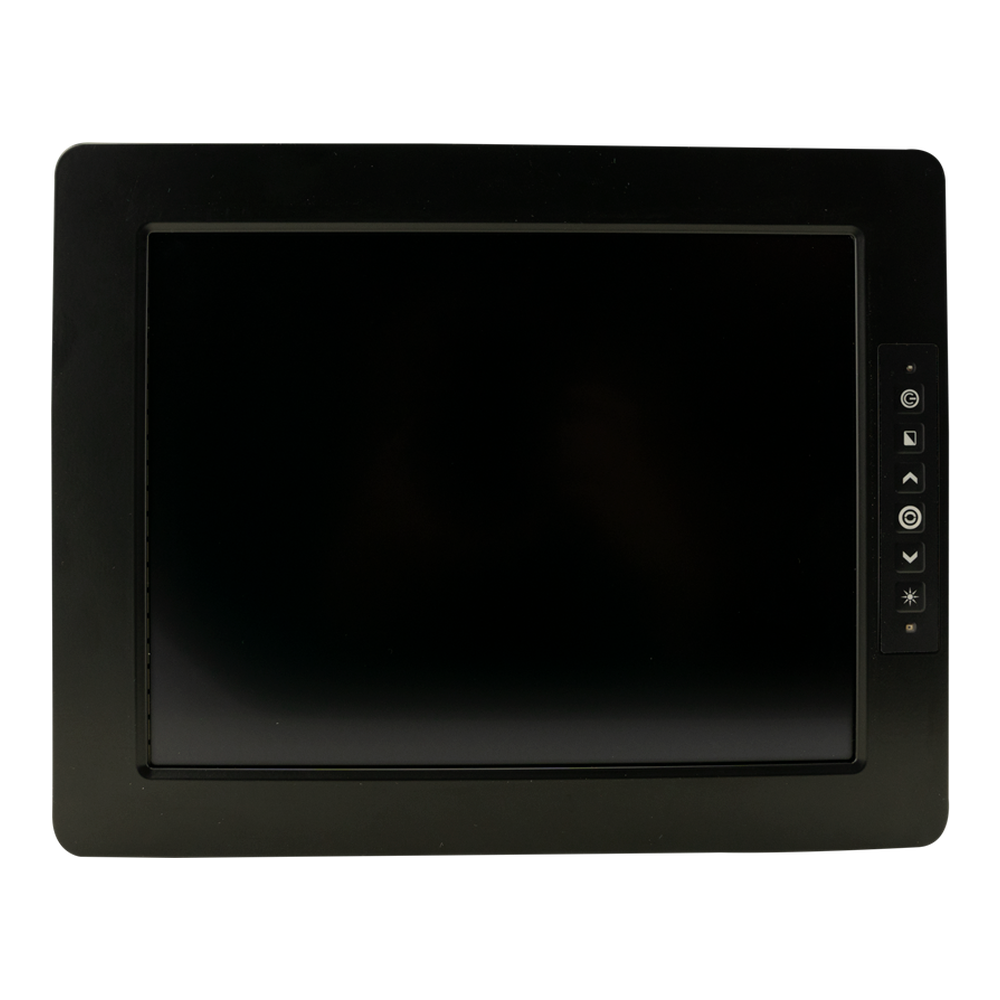

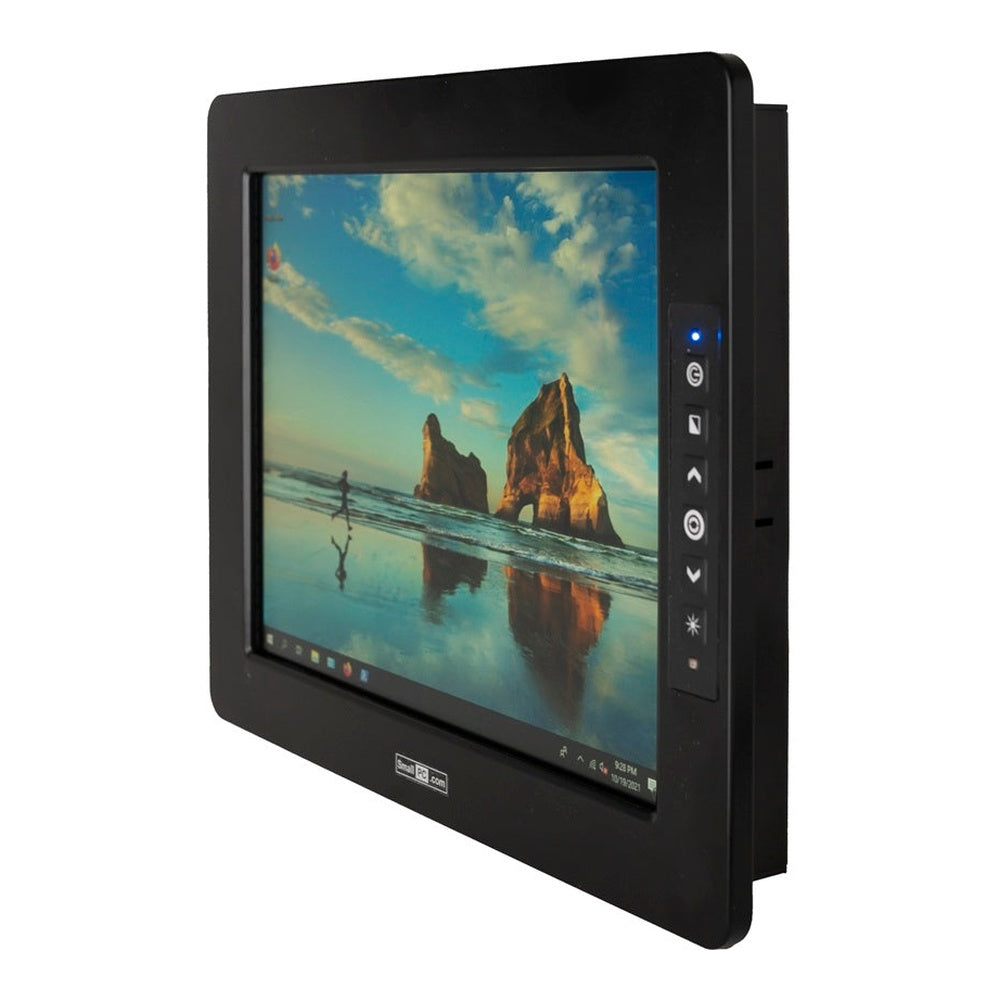

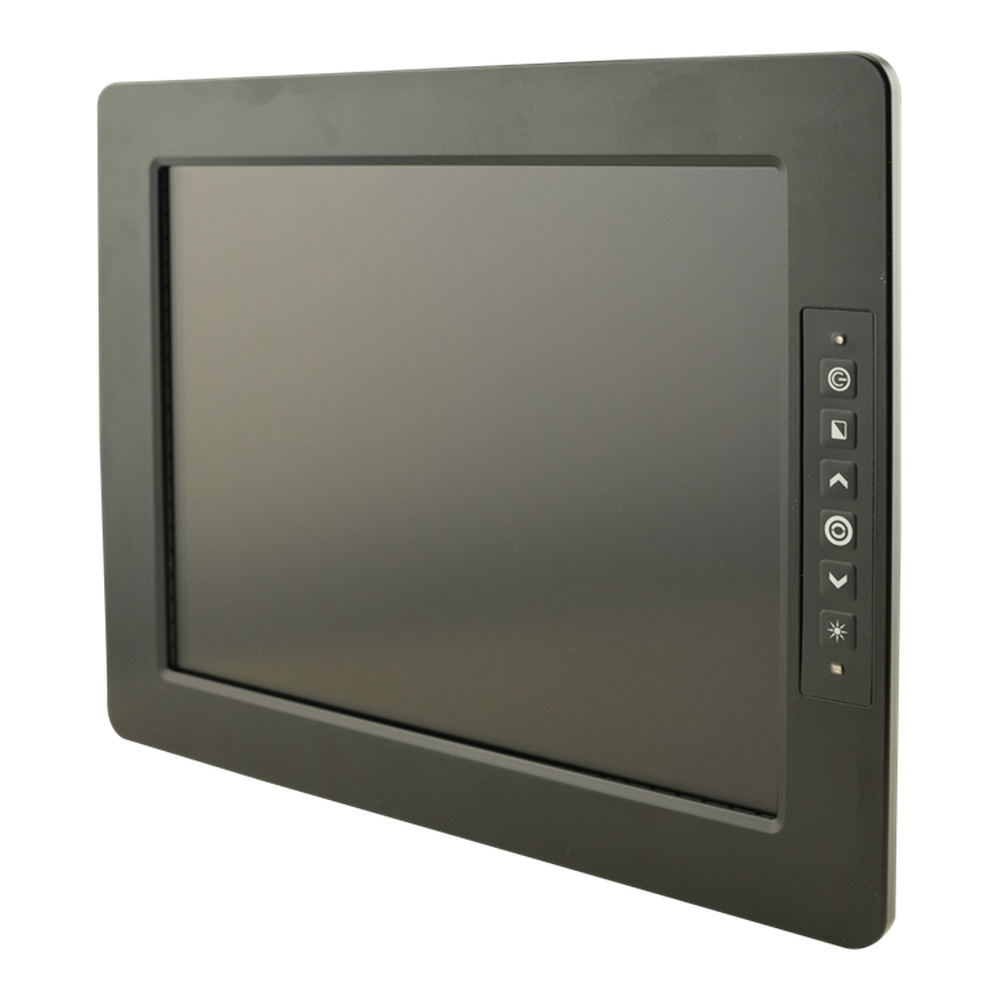

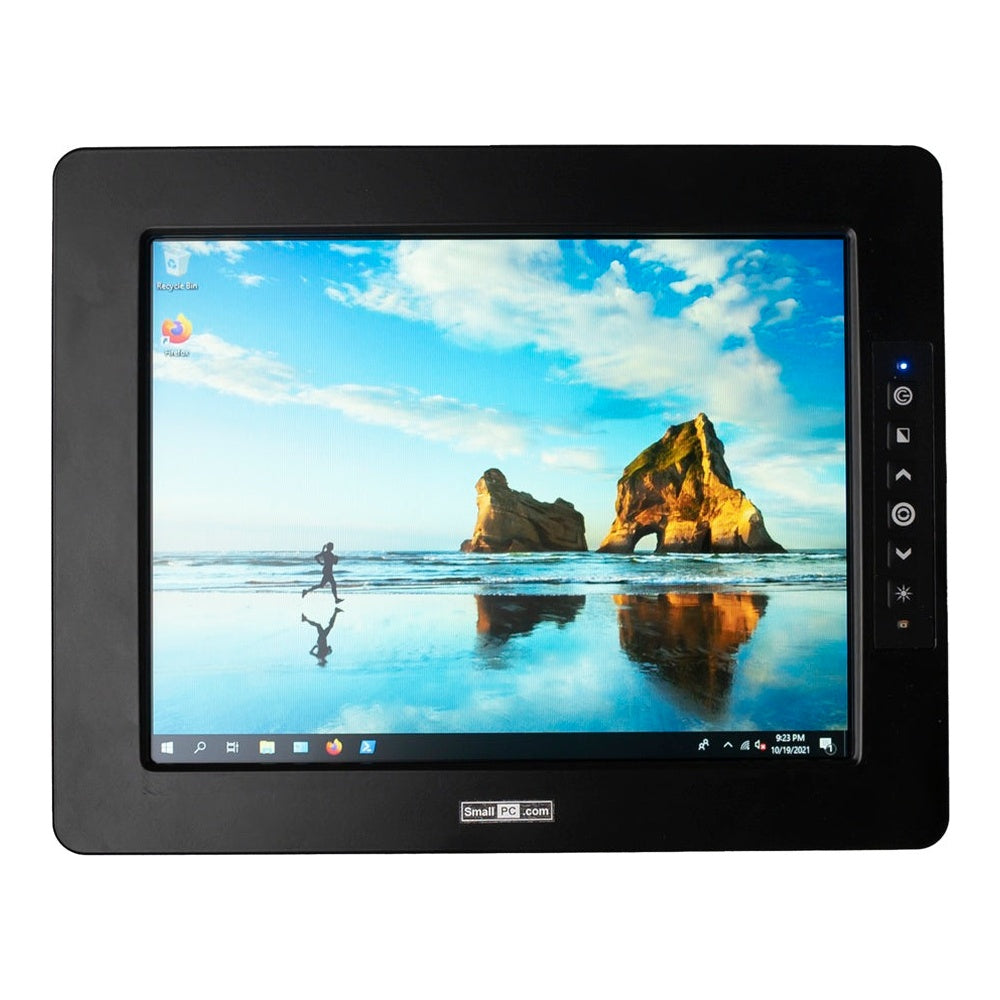

The SunVu 10XPM is a rugged 10.4" sunlight-readable touch LCD designed for superior clarity in outdoor and vehicle environments. With a 4:3 aspect ratio and native 1024x768 resolution (sync up to 1920x1440), it features high-brightness 1000-nit LED backlighting and advanced optical enhancements for exceptional visibility in direct sunlight. Its durable panelm-mount aluminum chassis, combined with an IP65 rating, ensures reliability in challenging conditions.

Available with resistive or projected capacitive touch screens, the SunVu 10XPM offers flexible input options, including VGA, HDMI, and composite video. It supports 6-32V DC input for compatibility with vehicle power systems and includes a 2.5m all-in-one cable for simplified installation. Rugged construction and adherence to MIL-STD-810F standards make it an ideal choice for demanding applications.

Specifications

  • Display Size: 10.4" LCD, 4:3 aspect ratio
  • Resolution: 1024x768 (native), sync up to 1920x1440
  • Brightness: 1000 nits with low-power LED backlights
  • Touch Screen Options: 4-wire resistive (>2M endurance) or projected capacitive
  • Inputs: VGA (HD15), HDMI, 2 composite video inputs, USB for touch
  • Power Supply: 6-32V DC input with protected vehicle power supply
  • Power Consumption: 8-12W (typical)
  • Contrast Ratio: 500:1
  • Audio: 2 x 1.8W stereo speakers
  • Construction: Aluminum/PVC-ABS chassis
  • Mounting: VESA mounting, 75mm (M4)
  • Cable: 2.5m all-in-one cable (optional 4.5m available)
  • Rugged Standards: Shock: 20G, 11ms (MIL-STD-810F 516.5); Vibration: 1G, 2-500Hz (MIL-STD-810F 514.5)
  • Ingress Protection: IP65 (IEC-529)
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -35°C to 85°C
  • Certifications: CE
