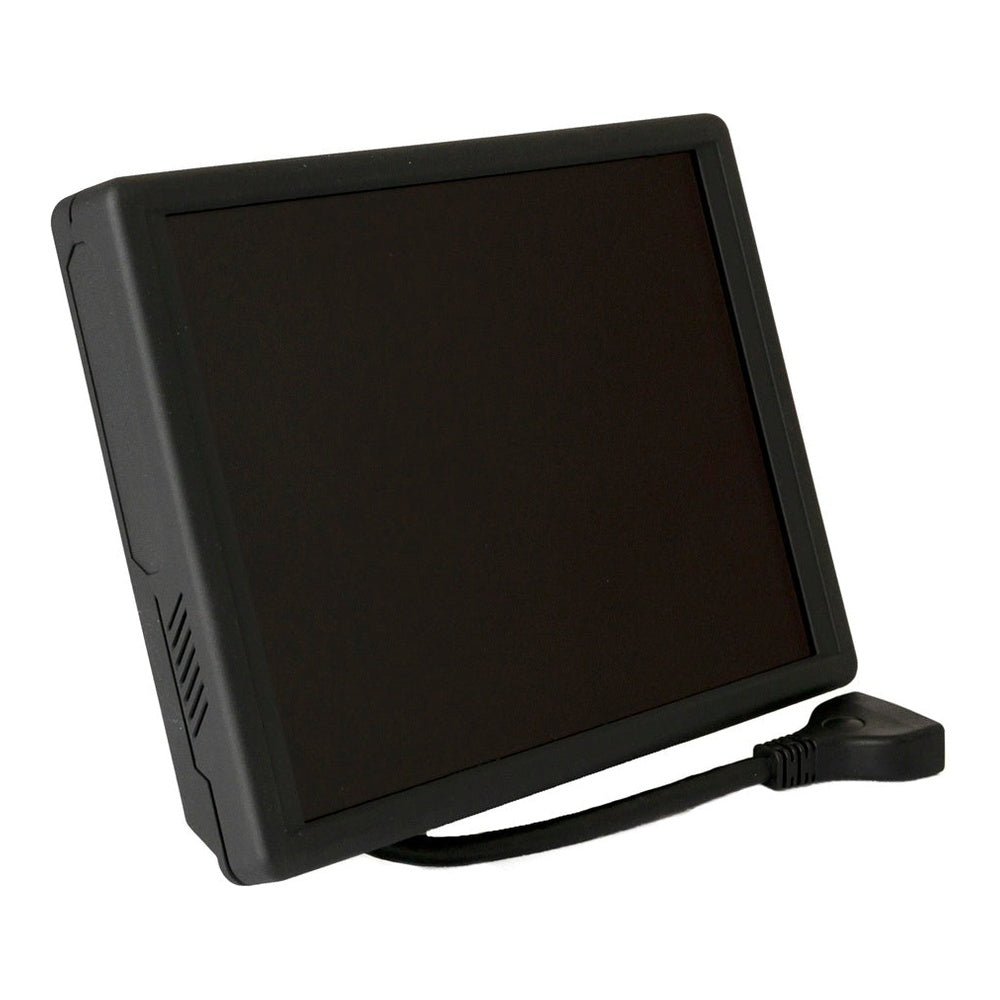

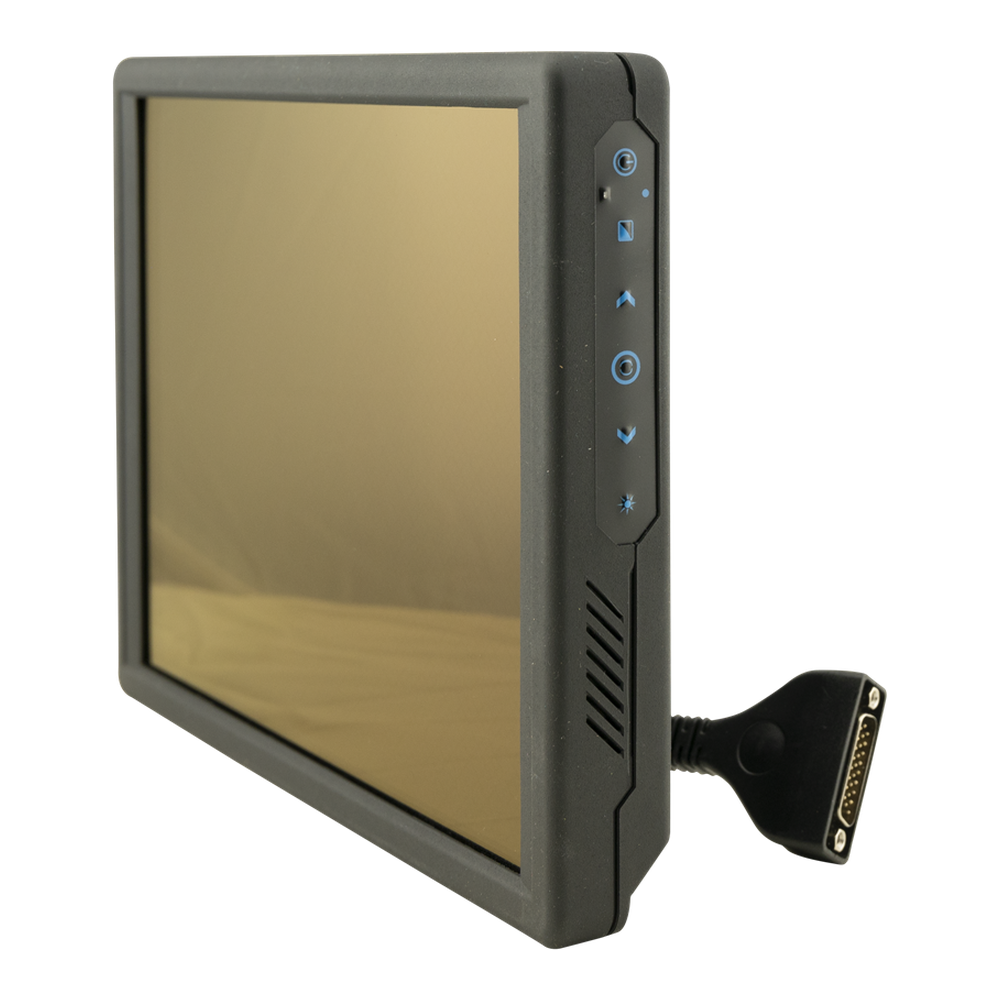

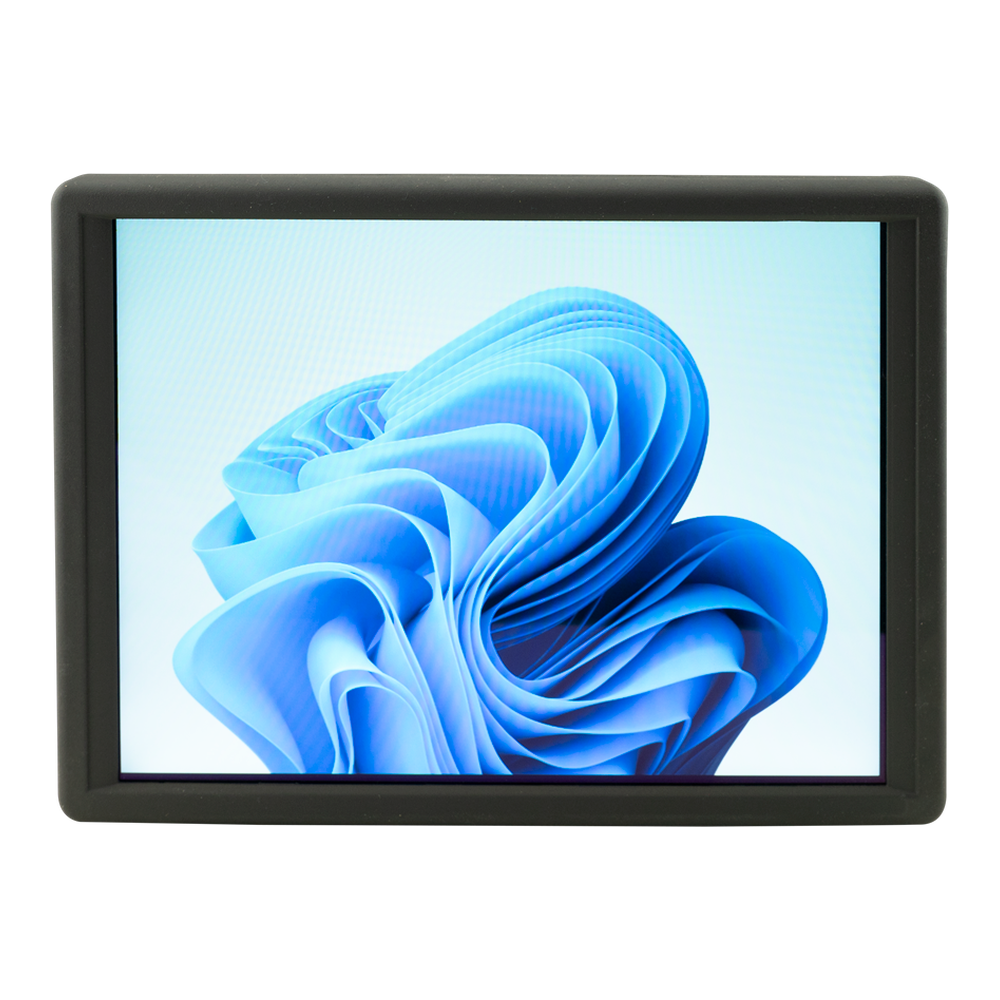

SunVu 10X Vehicle Display


Rugged 10.4" Sunlight Readable LCD with IP65 rating, 1024x768 resolution.

The SunVu 10X is a rugged 10.4" sunlight-readable LCD designed for superior clarity in outdoor and vehicle environments. With a 4:3 aspect ratio and native 1024x768 resolution (sync up to 1920x1440), it features high-brightness 1000-nit LED backlighting and advanced optical enhancements for exceptional visibility in direct sunlight. Its durable PVC and ABS chassis, combined with an IP65 rating, ensures reliability in challenging conditions.

Includes external cable and AC adapter for testing.

Specifications

  • Display Size: 10.4" LCD, 4:3 aspect ratio
  • Resolution: 1024x768 (native), sync up to 1920x1440
  • Brightness: 1000 nits with low-power LED backlights
  • Touch Screen Options: 4-wire resistive (>2M endurance) or projected capacitive
  • Inputs: HDMI or VGA, 2 composite video inputs, USB for touch
  • Power Consumption: 8-12W (typical)
  • Contrast Ratio: 500:1
  • Audio: 2 x 1.8W stereo speakers
  • Construction: Aluminum/PVC-ABS chassis
  • Mounting: VESA mounting, 75mm (M4)

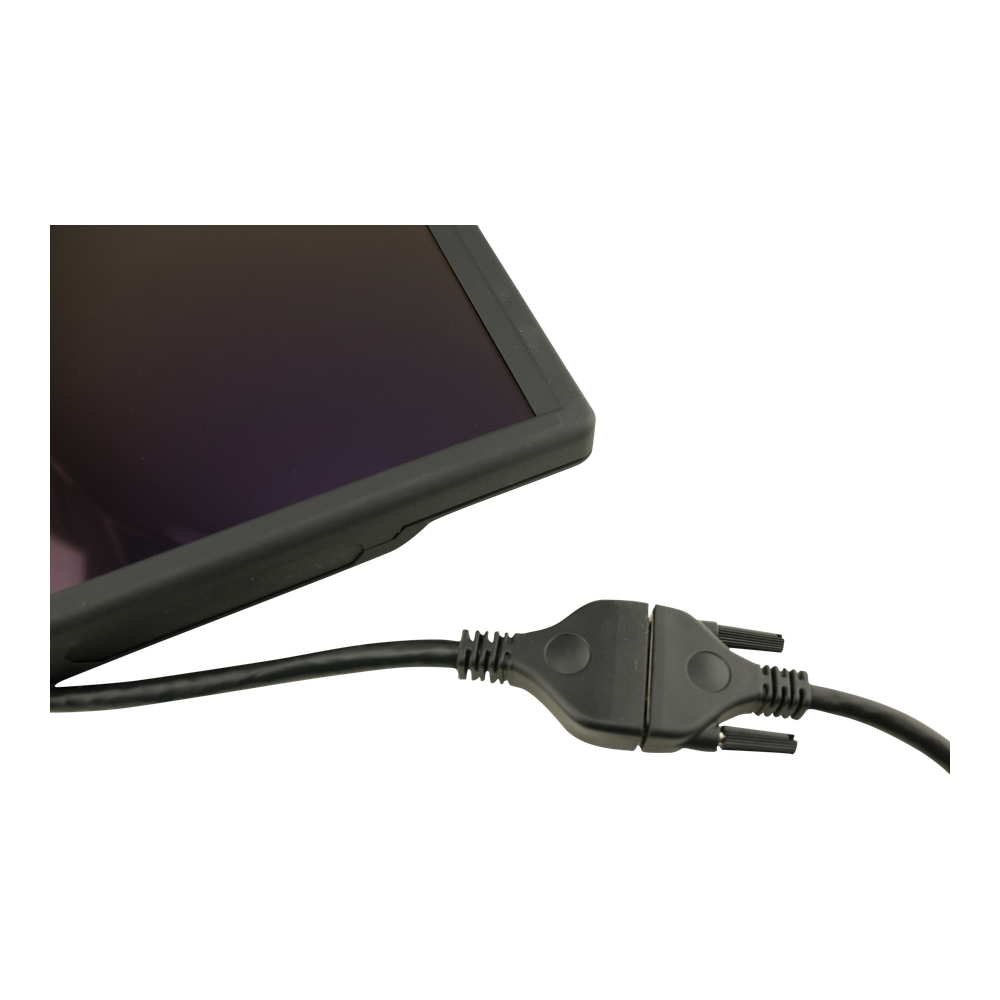

  • Cable: 2.5m all-in-one cable (optional 4.5m available)
  • Rugged Standards: Shock: 20G, 11ms (MIL-STD-810F 516.5); Vibration: 1G, 2-500Hz (MIL-STD-810F 514.5)
  • Ingress Protection: IP65 (IEC-529)
  • Operating Temperature: -20°C to 60°C
  • Certifications: CE
